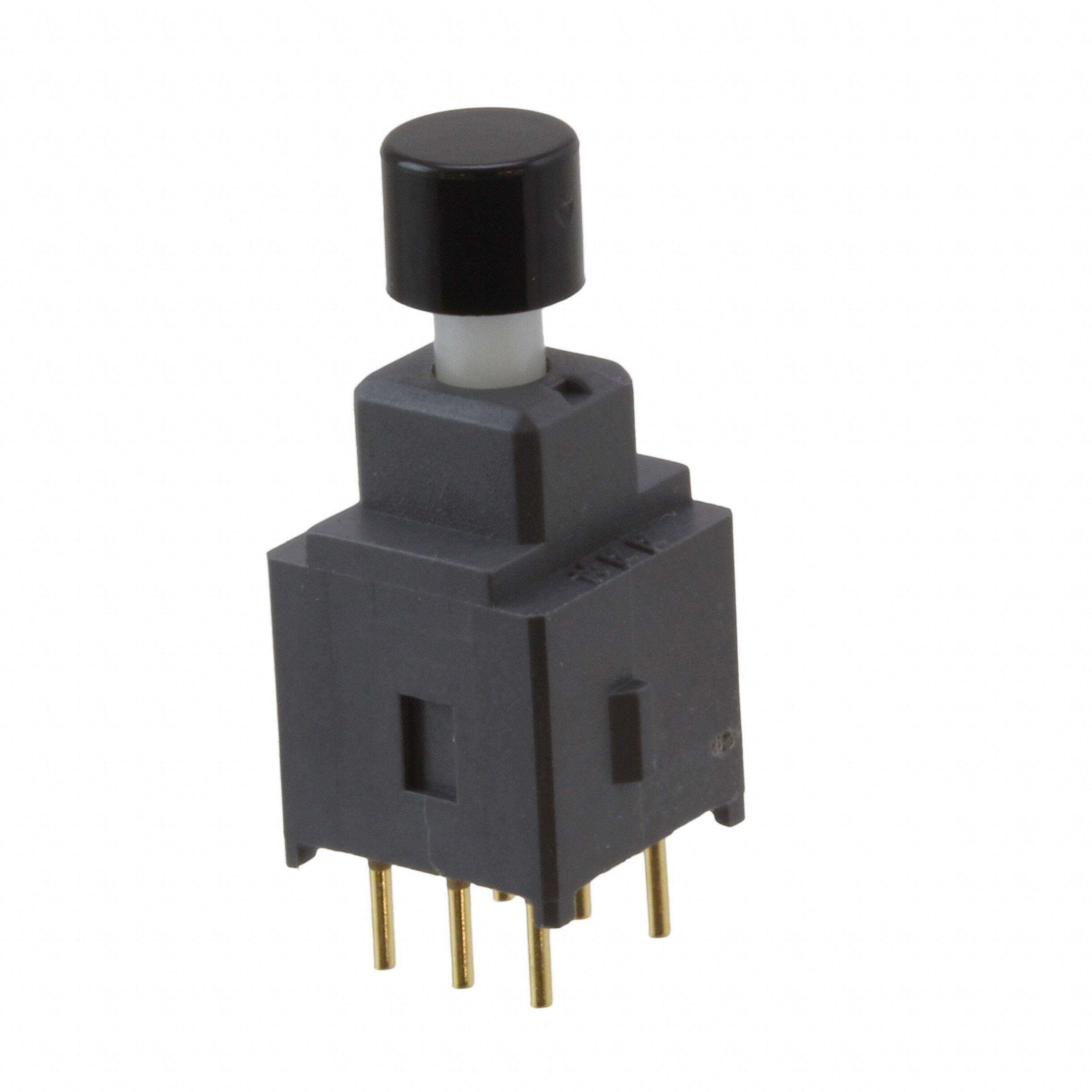

AB25AP-FA
RoHS
RoHS compliant
RoHS compliantPackage 201
Category Switches / Pushbutton Switches
Description
Pushbutton Switches ON-(ON) .201 BLK CAP STRT PC .4VA
PDF
/
Buying Options
Total Price: USD $6.6
Unit Price: USD $6.6
≥1 USD $6.6
≥10 USD $5.94264
≥100 USD $5.64432
≥500 USD $5.4054
≥1000 USD $5.2261
≥3000 USD $4.957383
Inventory: 85
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Dimensions
Actuator Length 0.248 inch
Length - Termination 0.122 inch
Body Height 9.6mm
Technical
Washability SOLVENT
Operating Force-Max 2.55 N
Bushing Length 0.138 inch
Solderability WAVE
Actuator Travel 1.0922 mm
Contact Function ON-(ON)
PCB Hole Count 6
Contact (DC) Max Rating R Load .014A@28VDC
Contact (AC) Max Rating R Load .014A@28VAC
Contact Current(AC)-Max 0.014A
Mechanical Life 50,000 Cycles
Electrical Life 50,000 Cycles
Dielectric Withstanding Voltage 500VAC V
Sealing EPOXY TERMINAL SEALED; MOISTURE PROOF
Contact Current(DC)-Max 0.014A
Color - Actuator/Cap Black
Insulation Resistance 500000000Ohm
Contact Resistance 0.05mOhm
Switch Function On-Mom
Circuit DPDT
Actuator Type Round, Button
Body Breadth 9.2 mm
Body Length or Diameter 9.8mm
Voltage - Rated AC 28V
Termination Style PC Pin
Orientation Vertical
Current Rating (Amps) 0.4VA AC/DC
Voltage - Rated DC 28V
Power Rating 400mW
Type Standard
ECCN Code EAR99
Termination PC Pin
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Sealed - Fully
JESD-609 Code e4
Series AB
Published 2010
Packaging Tray
Operating Temperature -30°C~85°C
Physical
End Contact Material BRASS
Center Contact Material PHOSPHOR BRONZE
Actuator Material POLYCARBONATE
Housing Material Polyamide
Package / Case 201
Mounting Type Through Hole
Mount Through Hole
Contact Plating Gold
Supply Chain
Factory Lead Time 14 Weeks
