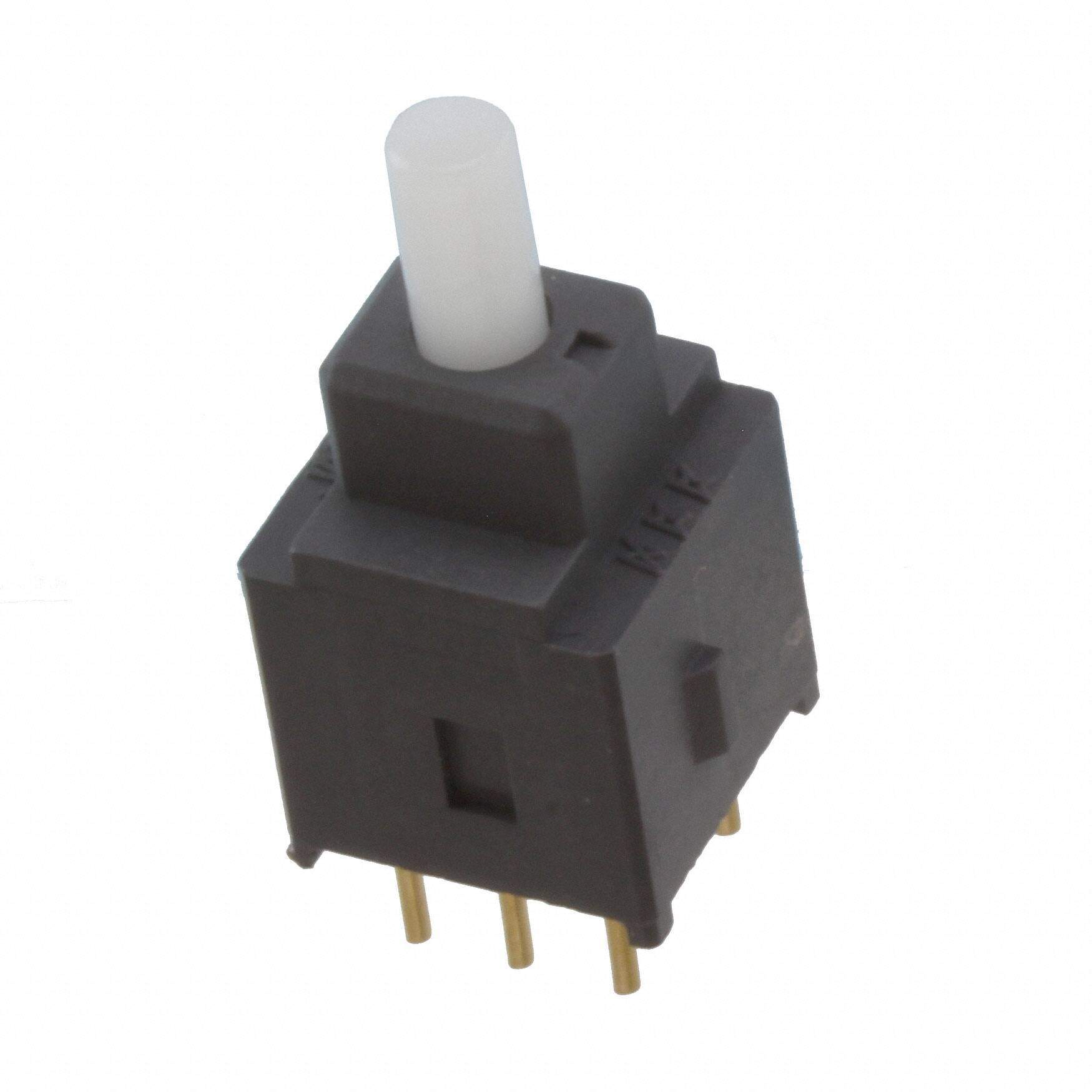

AB25AP
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
Pushbutton Switches DPDT ON-(ON) STRT
PDF
/
Buying Options
Total Price: USD $6.33
Unit Price: USD $6.3272
≥1 USD $6.3272
≥10 USD $5.69536
≥100 USD $5.409184
≥500 USD $5.180032
≥1000 USD $5.008432
≥3000 USD $4.750803
Inventory: 163
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 5 Weeks
Physical
Contact Material Brass, Bronze, Gold
Contact Plating Gold
Mount PCB, Through Hole
Mounting Type Through Hole
Housing Material Polyamide
Technical
Operating Temperature -30°C~85°C
Packaging Box
Published 2006
Series AB
Feature Sealed - Fully
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination PC Pin
Type Standard
Power Rating 400mW
Voltage - Rated DC 28V
Current Rating (Amps) 0.4VA AC/DC
Termination Style PC Pin
Voltage - Rated AC 28V
Body Length or Diameter 9.8044mm
Body Breadth 9.1948 mm
Actuator Type Plunger for Cap
Circuit DPDT
Switch Function On-Mom
Contact Resistance 0.05mOhm
Insulation Resistance 500000000Ohm
Color - Actuator/Cap White
Sealing EPOXY
Dielectric Withstanding Voltage 500VAC V
Electrical Life 50,000 Cycles
Mechanical Life 50,000 Cycles
Contact Function ON-(ON)
Actuator Travel 1.0922 mm
Solderability WAVE
Bushing Length 0.138 inch
Dimensions
Body Height 9.6012mm
Length - Termination 0.122 inch
Actuator Length 0.213 inch
Compliance
RoHS Status ROHS3 Compliant
