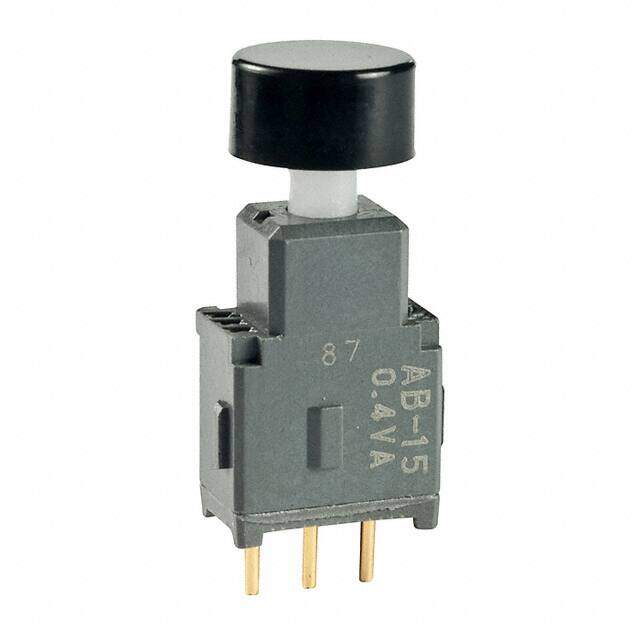

AB15AP-HA
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSH SPDT 0.4VA 28V
PDF
/
Buying Options
Total Price: USD $4.89
Unit Price: USD $4.8928
≥1 USD $4.8928
≥10 USD $4.4088
≥100 USD $4.188096
≥500 USD $4.011744
≥1000 USD $3.879392
≥3000 USD $3.68104
Inventory: 461
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 5 Weeks
Physical
Contact Plating Gold
Mount Through Hole
Mounting Type Through Hole
Housing Material Polyamide
Actuator Material POLYCARBONATE
Center Contact Material PHOSPHOR BRONZE
End Contact Material BRASS
Technical
Operating Temperature -30°C~85°C
Packaging Box
Published 2010
Series AB
JESD-609 Code e4
Feature Sealed - Fully
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination PC Pin
ECCN Code EAR99
Type Standard
Power Rating 400mW
Voltage - Rated DC 28V
Current Rating (Amps) 0.4VA AC/DC
Termination Style PC Pin
Voltage - Rated AC 28V
Body Length or Diameter 9.8044mm
Body Breadth 5.842 mm
Actuator Type Round, Button
Circuit SPDT
Switch Function On-Mom
Contact Resistance 0.05mOhm
Insulation Resistance 500000000Ohm
Color - Actuator/Cap Black
Sealing EPOXY
Dielectric Withstanding Voltage 500VAC V
Electrical Life 50,000 Cycles
Mechanical Life 50,000 Cycles
PCB Hole Count 3
Contact Function ON-(ON)
Actuator Travel 1.0922 mm
Solderability WAVE
Bushing Length 0.177 inch
Washability SOLVENT
Dimensions
Body Height 22.5044mm
Length - Termination 0.122 inch
Actuator Length 0.248 inch
Compliance
RoHS Status ROHS3 Compliant
