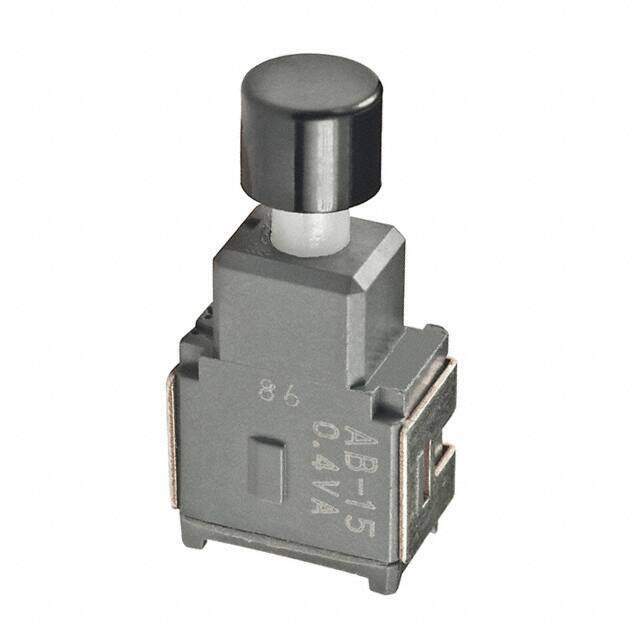

AB15AH-FA
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSH SPDT 0.4VA 28V
PDF
/
Buying Options
Total Price: USD $3.97
Unit Price: USD $3.9688
≥1 USD $3.9688
≥10 USD $3.57368
≥100 USD $3.39504
≥500 USD $3.25226
≥1000 USD $3.146
Inventory: 1240
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Contains Lead
RoHS Status ROHS3 Compliant
Dimensions
Actuator Length 0.248 inch
Length - Termination 0.122 inch
Body Height 20.4724mm
Technical
Washability SOLVENT
Bushing Length 0.177 inch
Solderability WAVE
Actuator Travel 1.0922 mm
Contact Function ON-(ON)
PCB Hole Count 5
Mechanical Life 50,000 Cycles
Electrical Life 50,000 Cycles
Dielectric Withstanding Voltage 500VAC V
Sealing EPOXY
Color - Actuator/Cap Black
Insulation Resistance 500000000Ohm
Contact Resistance 0.05mOhm
Switch Function On-Mom
Circuit SPDT
Actuator Type Round, Button
Body Breadth 6.1722 mm
Body Length or Diameter 9.8044mm
Voltage - Rated AC 28V
Termination Style PC Pin
Orientation Right Angle
Current Rating (Amps) 0.4VA AC/DC
Additional Feature MOUNTING BRACKET
Terminal Finish Gold (Au)
Type Standard
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Sealed - Fully
JESD-609 Code e4
Series AB
Published 2015
Packaging Tray
Operating Temperature -30°C~85°C
Physical
End Contact Plating GOLD OVER NICKEL
End Contact Material BRASS
Center Contact Material PHOSPHOR BRONZE
Center Contact Plating GOLD OVER SILVER
Actuator Material POLYCARBONATE
Insulation Material GLASS FILLED POLYAMIDE
Surface Mount NO
Mounting Type Through Hole, Right Angle
