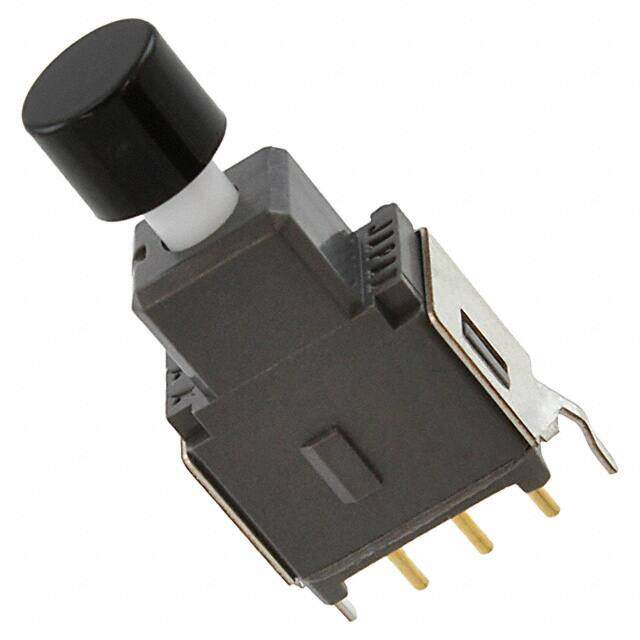

AB15AB1-FA
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
Pushbutton Switches ON-(ON).201BLKCAP STRT BRKT PC .4VA
PDF
/
Buying Options
Total Price: USD $5.32
Unit Price: USD $5.324
≥1 USD $5.324
≥10 USD $4.79952
≥100 USD $4.559456
≥500 USD $4.36766
≥1000 USD $4.22356
≥3000 USD $4.007599
Inventory: 159
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 5 Weeks
Physical
Contact Material Bronze
Contact Plating Gold
Mount Through Hole
Mounting Type Through Hole
Housing Material Polyamide
Actuator Material Polyacetal
Technical
Operating Temperature -30°C~85°C
Packaging Tray
Published 2010
Series AB
JESD-609 Code e4
Feature Sealed - Fully
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination PC Pin
Type Standard
Additional Feature MOUNTING BRACKET
Power Rating 400mW
Voltage - Rated DC 28V
Current Rating (Amps) 0.4VA AC/DC
Orientation Vertical
Depth 5.84mm
Termination Style PC Pin
Voltage - Rated AC 28V
Body Breadth 5.842 mm
Actuator Type Round, Button
Circuit SPDT
Switch Function On-Mom
Contact Resistance 0.05mOhm
Insulation Resistance 500000000Ohm
Color - Actuator/Cap Black
Sealing EPOXY
Max Voltage Rating (AC) 28V
Max Current Rating 100mA
Dielectric Withstanding Voltage 500VAC V
Electrical Life 50,000 Cycles
Max Voltage Rating (DC) 28V
Mechanical Life 50,000 Cycles
PCB Hole Count 5
Contact Function ON-(ON)
Solderability WAVE
Washability SOLVENT
Dimensions
Length 9.8mm
Body Height 22.5044mm
Compliance
RoHS Status ROHS3 Compliant
Lead Free Contains Lead
