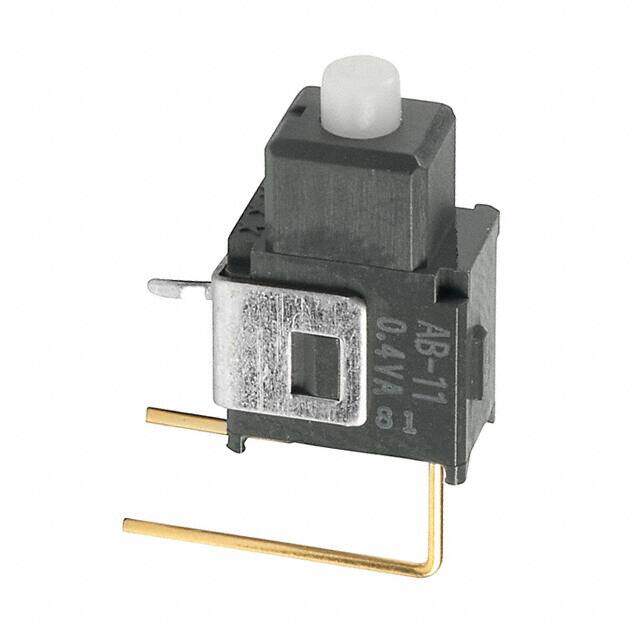

AB11CV1
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSH SPST-NO 0.4VA 28V
PDF
/
Buying Options
Total Price: USD $5.24
Unit Price: USD $5.2448
≥1 USD $5.2448
≥10 USD $4.72824
≥100 USD $4.491872
≥500 USD $4.302848
≥1000 USD $4.160992
≥3000 USD $3.948243
Inventory: 75
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Dimensions
Actuator Length 0.248 inch
Length - Termination 0.192 inch
Body Height 21.2852mm
Technical
Washability SOLVENT
Contact (DC) Max Power Rating R Load 0.4VA@28VDC
Body Color BLACK
Bushing Length 0.177 inch
Solderability WAVE
Actuator Travel 1.0922 mm
Contact Function OFF-(ON)
PCB Hole Count 3
Mechanical Life 50,000 Cycles
Throw Configuration SPST
Electrical Life 50,000 Cycles
Dielectric Withstanding Voltage 500VAC V
Sealing EPOXY
Color - Actuator/Cap White
Insulation Resistance 500000000Ohm
Contact Resistance 0.05mOhm
Switch Function Off-Mom
Circuit SPST-NO
Actuator Type Round, Plunger
Body Breadth 5.842 mm
Body Length or Diameter 9.7282mm
Voltage - Rated AC 28V
Termination Style PC Pin
Current Rating (Amps) 0.4VA AC/DC
Voltage - Rated DC 28V
Additional Feature MOUNTING BRACKET
Terminal Finish Gold (Au)
Type Standard
Termination PC Pin
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Sealed - Fully
JESD-609 Code e4
Series AB
Published 2010
Packaging Box
Operating Temperature -30°C~85°C
Physical
End Contact Plating GOLD OVER NICKEL
End Contact Material BRASS
Center Contact Material PHOSPHOR BRONZE
Center Contact Plating GOLD OVER SILVER
Actuator Material POLYACETAL
Insulation Material GLASS FILLED POLYAMIDE
Mounting Type Through Hole, Right Angle, Vertical
Mount Through Hole, Vertical
Supply Chain
Factory Lead Time 14 Weeks
