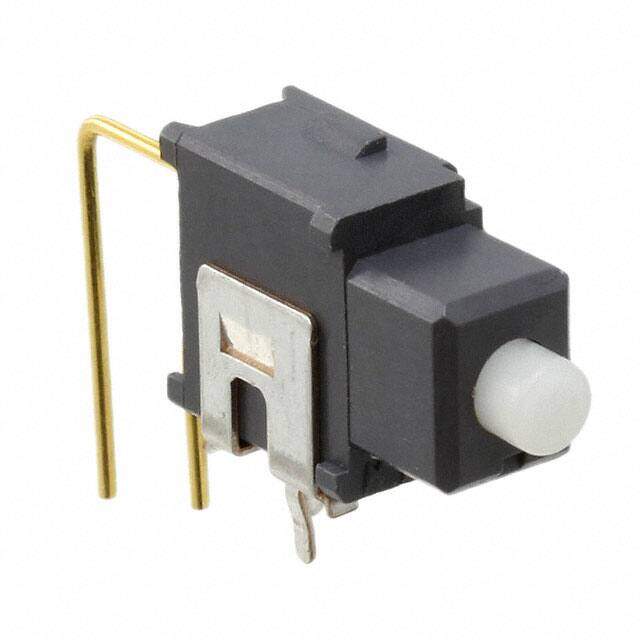

AB11CV
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
Pushbutton Switches Washable, Process Sealed Subminiature
PDF
/
Buying Options
Total Price: USD $5.4
Unit Price: USD $5.4032
≥1 USD $5.4032
≥10 USD $4.8708
≥100 USD $4.286128
≥500 USD $3.57991
Inventory: 253
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Mount Through Hole, Vertical
Mounting Type Through Hole, Right Angle, Vertical
Insulation Material GLASS FILLED POLYAMIDE
Actuator Material POLYACETAL
Center Contact Plating GOLD OVER SILVER
Center Contact Material PHOSPHOR BRONZE
End Contact Material BRASS
End Contact Plating GOLD OVER NICKEL
Technical
Operating Temperature -30°C~85°C
Packaging Bulk
Published 2010
Series AB
JESD-609 Code e4
Feature Sealed - Fully
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination PC Pin
Type Standard
Terminal Finish Gold (Au)
Additional Feature MOUNTING BRACKET
Voltage - Rated DC 28V
Current Rating (Amps) 0.4VA AC/DC
Termination Style PC Pin
Voltage - Rated AC 28V
Body Length or Diameter 10.2108mm
Body Breadth 5.842 mm
Actuator Type Round, Plunger
Circuit SPST-NO
Switch Function Off-Mom
Contact Resistance 0.05mOhm
Insulation Resistance 500000000Ohm
Color - Actuator/Cap White
Sealing EPOXY
Dielectric Withstanding Voltage 500VAC V
Electrical Life 50,000 Cycles
Throw Configuration SPST
Mechanical Life 50,000 Cycles
PCB Hole Count 5
Contact Function OFF-(ON)
Actuator Travel 1.0922 mm
Solderability WAVE
Bushing Length 0.177 inch
Body Color BLACK
Contact (DC) Max Power Rating R Load 0.4VA@28VDC
Washability SOLVENT
Dimensions
Body Height 21.2852mm
Length - Termination 0.192 inch
Actuator Length 0.248 inch
Compliance
RoHS Status ROHS3 Compliant
