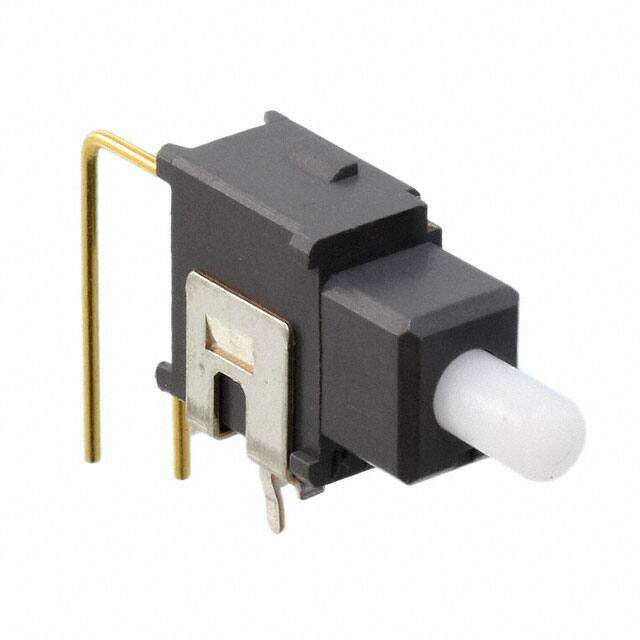

AB11BV
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSH SPST-NO 0.4VA 28V
PDF
/
Buying Options
Total Price: USD $5.43
Unit Price: USD $5.4296
≥1 USD $5.4296
≥10 USD $4.8884
≥100 USD $4.643936
≥500 USD $4.4484
≥1000 USD $4.301792
≥3000 USD $4.081827
Inventory: 42
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 5 Weeks
Physical
Mount Through Hole, Vertical
Mounting Type Through Hole, Right Angle, Vertical
Housing Material GLASS FILLED POLYAMIDE
Actuator Material POLYACETAL
Center Contact Plating GOLD
Center Contact Material PHOSPHOR BRONZE
Terminal Material BRASS
End Contact Material BRASS
End Contact Plating GOLD
Technical
Operating Temperature -30°C~85°C
Packaging Box
Published 2015
Series AB
Feature Sealed - Fully
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination PC Pin
Type Standard
Voltage - Rated DC 28V
Current Rating (Amps) 0.4VA AC/DC
Termination Style PC Pin
Voltage - Rated AC 28V
Body Length or Diameter 5.842mm
Body Breadth 10.2108 mm
Actuator Type Plunger for Cap
Circuit SPST-NO
Switch Function Off-Mom
Contact Resistance 0.05mOhm
Insulation Resistance 500000000Ohm
Color - Actuator/Cap White
Sealing EPOXY
Dielectric Withstanding Voltage 500VAC V
Electrical Life 50,000 Cycles
Throw Configuration SPST
Mechanical Life 50,000 Cycles
Contact Timing BREAK-BEFORE-MAKE
Contact Function OFF-(ON)
Actuator Travel 1.0922 mm
Solderability WAVE
Bushing Length 0.212 inch
Contact (DC) Max Power Rating R Load 0.4VA@28VDC
Dimensions
Body Height 14.4526mm
Length - Termination 0.122 inch
Actuator Length 0.183 inch
Compliance
RoHS Status ROHS3 Compliant
