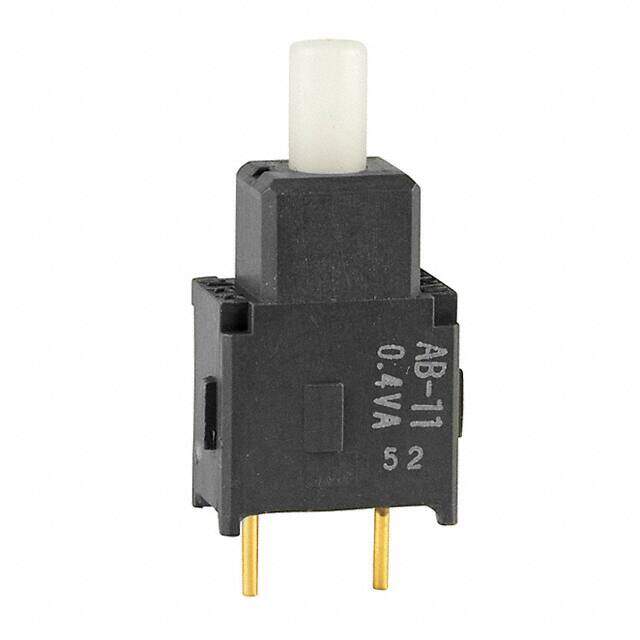

AB11BP
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSH SPST-NO 0.4VA 28V
PDF
/
Buying Options
Total Price: USD $4.68
Unit Price: USD $4.6816
≥1 USD $4.6816
≥10 USD $4.17472
≥100 USD $3.951552
≥500 USD $3.80974
≥1000 USD $3.62736
≥3000 USD $3.465246
Inventory: 74
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 5 Weeks
Physical
Contact Plating Gold
Mount Through Hole
Mounting Type Through Hole
Housing Material Polyamide
Actuator Material POLYACETAL
Center Contact Material PHOSPHOR BRONZE
Terminal Material BRASS
End Contact Material BRASS
Technical
Operating Temperature -30°C~85°C
Packaging Tray
Published 2010
Series AB
Feature Sealed - Fully
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination PC Pin
ECCN Code EAR99
Type Standard
HTS Code 8536.50.90.31
Power Rating 400mW
Voltage - Rated DC 28V
Current Rating (Amps) 0.4VA AC/DC
Orientation Vertical
Termination Style PC Pin
Voltage - Rated AC 28V
Body Length or Diameter 9.8mm
Body Breadth 5.84 mm
Actuator Type Plunger for Cap
Circuit SPST-NO
Switch Function Off-Mom
Contact Resistance 0.05mOhm
Insulation Resistance 500000000Ohm
Color - Actuator/Cap White
Contact Current(DC)-Max 0.014A
Sealing EPOXY TERMINAL SEALED; MOISTURE PROOF
Dielectric Withstanding Voltage 500VAC V
Electrical Life 50,000 Cycles
Throw Configuration SPST
Mechanical Life 50,000 Cycles
Contact Current(AC)-Max 0.014A
Contact (AC) Max Rating R Load .014A@28VAC
Contact (DC) Max Rating R Load .014A@28VDC
Contact Function OFF-(ON)
Actuator Travel 1.0922 mm
Solderability WAVE
Bushing Length 0.177 inch
Operating Force-Max 2.55 N
Dimensions
Body Height 13.1mm
Length - Termination 0.122 inch
Actuator Length 0.183 inch
Compliance
RoHS Status ROHS3 Compliant
Lead Free Lead Free
