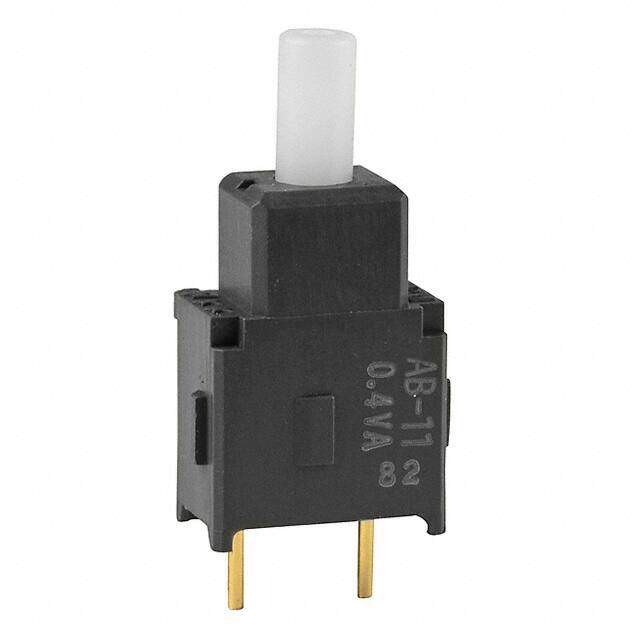

AB11AP
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSH SPST-NO 0.4VA 28V
PDF
/
Buying Options
Total Price: USD $4.68
Unit Price: USD $4.6816
≥1 USD $4.6816
≥10 USD $4.17472
≥100 USD $3.951552
≥500 USD $3.80974
≥1000 USD $3.62736
≥3000 USD $3.465246
Inventory: 778
Minimum: 1
-
+
Technical Details
Technical
Current Rating 400mA
Termination Style PC Pin
Voltage - Rated AC 28V
Body Breadth 5.842 mm
Actuator Type Plunger for Cap
Circuit SPST-NO
Switch Function Off-Mom
Contact Resistance 0.05mOhm
Insulation Resistance 500000000Ohm
Color - Actuator/Cap White
Sealing EPOXY
Max Voltage Rating (AC) 28V
Max Current Rating 100mA
Dielectric Withstanding Voltage 500VAC V
Electrical Life 50,000 Cycles
Throw Configuration SPDT, SPST
Max Voltage Rating (DC) 28V
Mechanical Life 50,000 Cycles
Contact Function OFF-(ON)
Solderability WAVE
Depth 5.84mm
Orientation Vertical
Current Rating (Amps) 0.4VA AC/DC
Voltage - Rated DC 28V
Power Rating 400mW
Type Standard
ECCN Code EAR99
Termination PC Pins
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Sealed - Fully
JESD-609 Code e4
Series AB
Published 2010
Packaging Tray
Operating Temperature -30°C~85°C
Dimensions
Length 9.8mm
Body Height 8.6106mm
Compliance
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
Physical
Terminal Material BRASS
Actuator Material Polyacetal
Housing Material Polyamide
Mounting Type Through Hole
Mount Through Hole
Contact Plating Gold
Contact Material Bronze
Supply Chain
Factory Lead Time 5 Weeks
