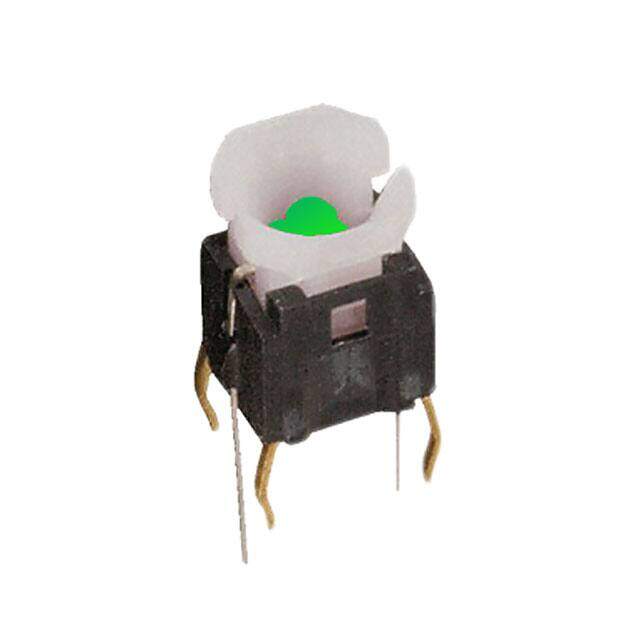

LTR2-01-L5
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSH SPST-NO 10MA 12V
PDF
/
Inventory: 8112
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Contact Plating Gold
Mount Through Hole
Mounting Type Through Hole
Technical
Operating Temperature -25°C~70°C
Packaging Bulk
Series LTR
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination PC Pins
Type Standard, Illuminated
Max Operating Temperature 70°C
Min Operating Temperature -25°C
Voltage - Rated DC 12V
Current Rating (Amps) 10mA DC
Termination Style PC Pin
Actuator Type Plunger for Cap
Circuit SPST-NO
Switch Function Off-Mom
Illumination Voltage (Nominal) 2.2VDC
Illumination Type, Color LED, Green
Electrical Life 100,000 Cycles
Dimensions
Height 9mm
Length 7mm
Width 7mm
Compliance
RoHS Status ROHS3 Compliant
