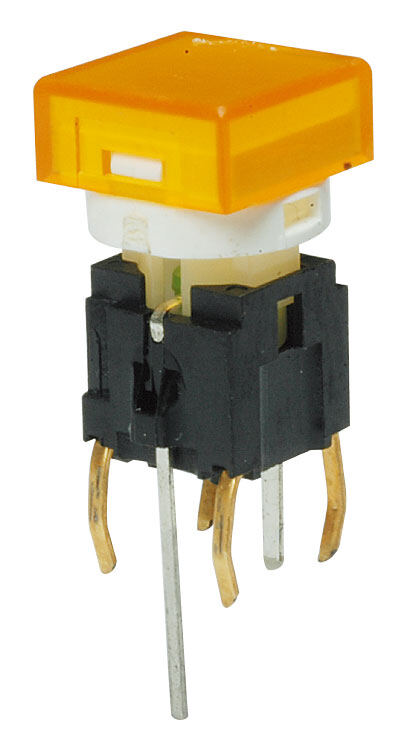

LTM2-01-L2
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SPST OFF-(ON)SILVER METAL CONTAC
PDF
/
Inventory: 6582
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Contact Plating Silver
Mounting Type Through Hole
Surface Mount NO
Technical
Operating Temperature -25°C~70°C
Packaging Bulk
Series LTM
JESD-609 Code e4
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination PC Pins
ECCN Code EAR99
Type Standard, Illuminated
Terminal Finish Gold (Au)
Composition Potentiometer
Additional Feature RED LED
HTS Code 8536.50.90.31
Power Rating 1W
Voltage - Rated DC 48V
Current Rating (Amps) 50mA DC
Termination Style PC Pin
Body Breadth 5.9944 mm
Actuator Type Plunger for Cap
Circuit SPST-NO
Switch Function Off-Mom
Contact Resistance 0.1mOhm
Insulation Resistance 100000000Ohm
Contact Current(DC)-Max 0.05A
Illumination Voltage (Nominal) 2VDC
Illumination Type, Color LED, Red
Contact Voltage(DC)-Max 48V
Dielectric Withstanding Voltage 250VAC V
Electrical Life 300,000 Cycles
PCB Hole Count 7
Contact Function OFF-(ON)
Actuator Travel 0.254 mm
Solderability HAND
Washability SOLVENT
Dimensions
Height 9mm
Length 7mm
Width 7mm
Compliance
RoHS Status ROHS3 Compliant
Lead Free Lead Free
