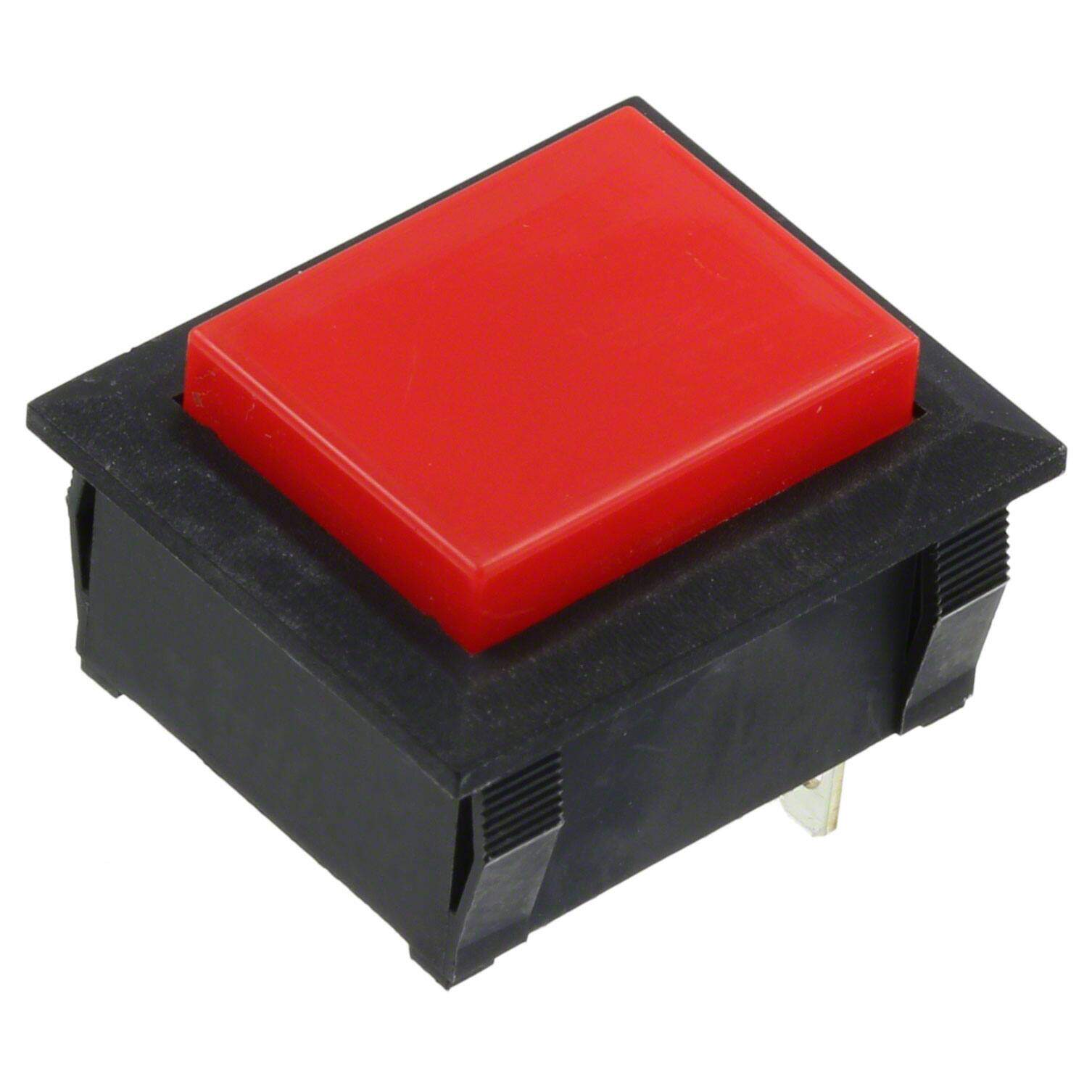

LP2W-26S-R-Z image
Favorite
LP2W-26S-R-Z image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Switches / Pushbutton Switches
Description Pushbutton Switch DPDT Standard Panel Mount, Snap-In
PDF
/
Inventory: 3817
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status ROHS3 Compliant

Technical

Throw Configuration DPDT
Electrical Life 30,000 Cycles
Color - Actuator/Cap Red
Panel Cutout Dimensions Rectangular - 19.20mm x 16.20mm
Switch Function On-Mom
Circuit DPDT
Actuator Type Rectangular, Button
Voltage - Rated AC 125V
Termination Style Solder Lug
Current Rating 3A
Current Rating (Amps) 3A AC/DC
Voltage - Rated DC 30V
Min Operating Temperature -15°C
Max Operating Temperature 60°C
Type Standard
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Last Time Buy
Series LP
Published 2016
Packaging Tube
Operating Temperature -15°C~60°C

Physical

Mounting Type Panel Mount, Snap-In
Mount Panel, Snap in
