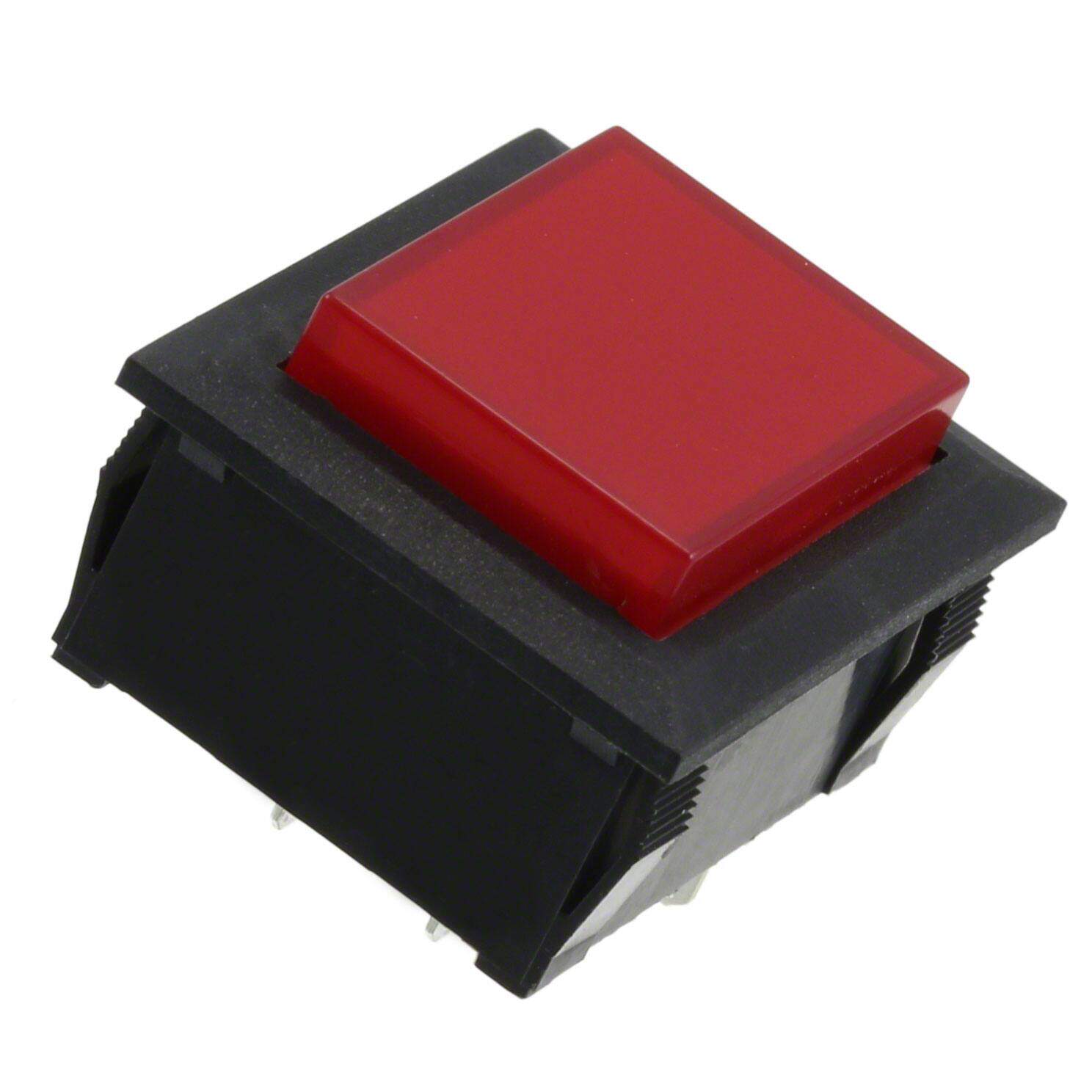

LP2W-26S-229-Z
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSHBUTTON DPDT 3A 125V
PDF
/
Inventory: 8667
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Panel, Snap in
Mounting Type Panel Mount, Snap-In
Technical
Operating Temperature -15°C~60°C
Packaging Tube
Published 2016
Series LP
Part Status Last Time Buy
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Type Standard, Illuminated
Max Operating Temperature 60°C
Min Operating Temperature -15°C
Voltage - Rated DC 30V
Current Rating (Amps) 3A AC/DC
Current Rating 3A
Termination Style Solder Lug
Voltage - Rated AC 125V
Actuator Type Rectangular, Button
Circuit DPDT
Switch Function On-Mom
Panel Cutout Dimensions Rectangular - 19.20mm x 16.20mm
Color - Actuator/Cap Red
Illumination Voltage (Nominal) 2VDC
Illumination Type, Color LED, Red
Electrical Life 30,000 Cycles
Throw Configuration DPDT
Illumination Type LED
Compliance
RoHS Status ROHS3 Compliant
