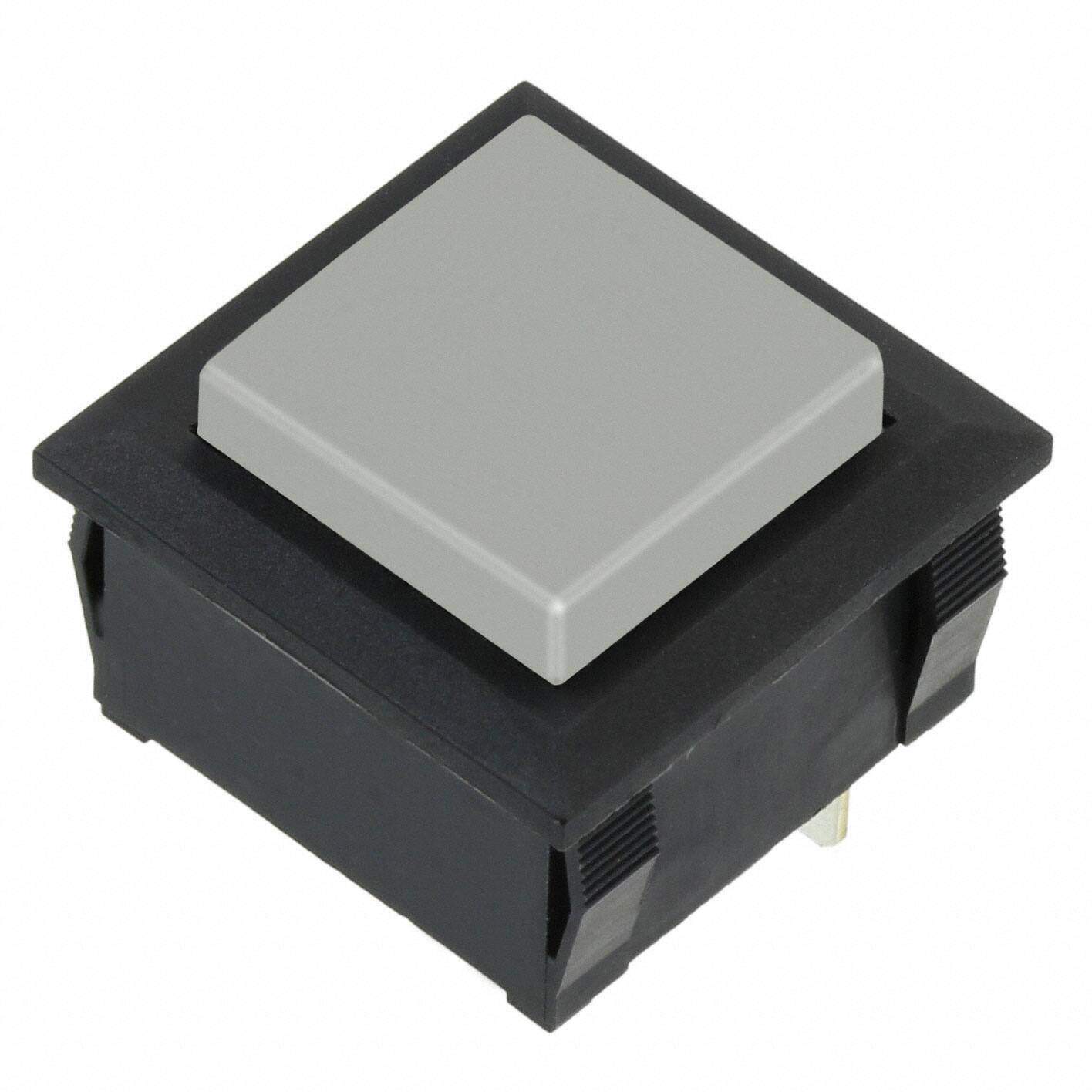

LP2S-16S-G-Z image
Favorite
LP2S-16S-G-Z image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Switches / Pushbutton Switches
Description SWITCH PUSHBUTTON SPDT 3A 125V
PDF
/
Inventory: 8840
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Physical

Mount Panel, Snap in
Mounting Type Panel Mount, Snap-In

Technical

Operating Temperature -15°C~60°C
Packaging Tube
Published 2016
Series LP
Part Status Last Time Buy
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Type Standard
Max Operating Temperature 60°C
Min Operating Temperature -15°C
Voltage - Rated DC 30V
Current Rating (Amps) 3A AC/DC
Current Rating 3A
Termination Style Solder Lug
Voltage - Rated AC 125V
Actuator Type Square, Button
Circuit SPDT
Switch Function On-Mom
Panel Cutout Dimensions Square - 16.20mm2
Color - Actuator/Cap Gray
Electrical Life 30,000 Cycles
Throw Configuration SPDT

Compliance

RoHS Status ROHS3 Compliant
