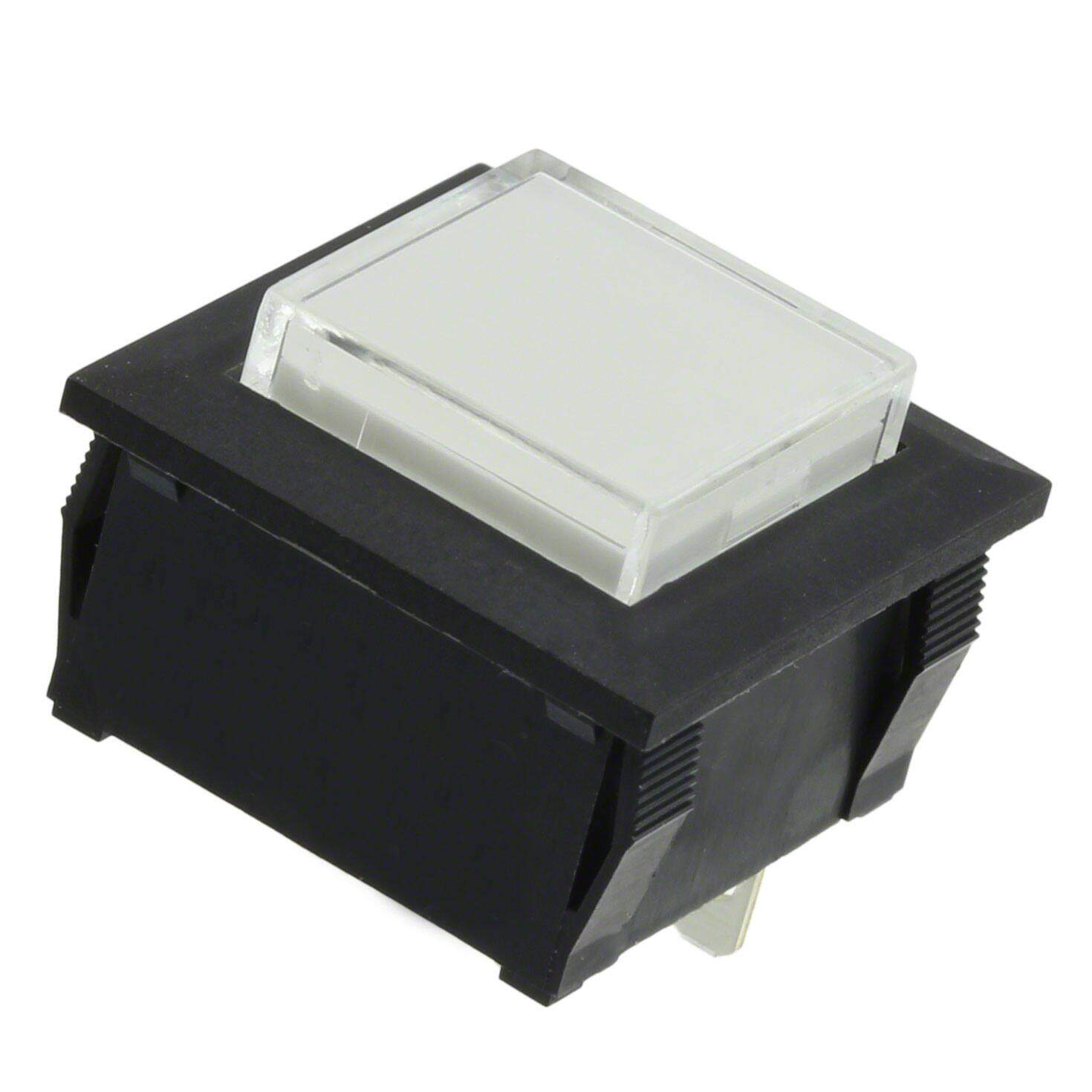

LP2S-16S-209-Z
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSHBUTTON SPDT 3A 125V
PDF
/
Inventory: 5623
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Technical
Illumination Type LED
Throw Configuration SPDT
Electrical Life 30,000 Cycles
Illumination Type, Color LED, Red
Illumination Voltage (Nominal) 2VDC
Color - Actuator/Cap Clear
Panel Cutout Dimensions Square - 16.20mm2
Switch Function On-Mom
Circuit SPDT
Actuator Type Square, Button
Voltage - Rated AC 125V
Termination Style Solder Lug
Current Rating 3A
Current Rating (Amps) 3A AC/DC
Voltage - Rated DC 30V
Min Operating Temperature -15°C
Max Operating Temperature 60°C
Type Standard, Illuminated
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Last Time Buy
Series LP
Published 2016
Packaging Tube
Operating Temperature -15°C~60°C
Physical
Mounting Type Panel Mount, Snap-In
Mount Panel, Snap in
Compliance
RoHS Status ROHS3 Compliant
