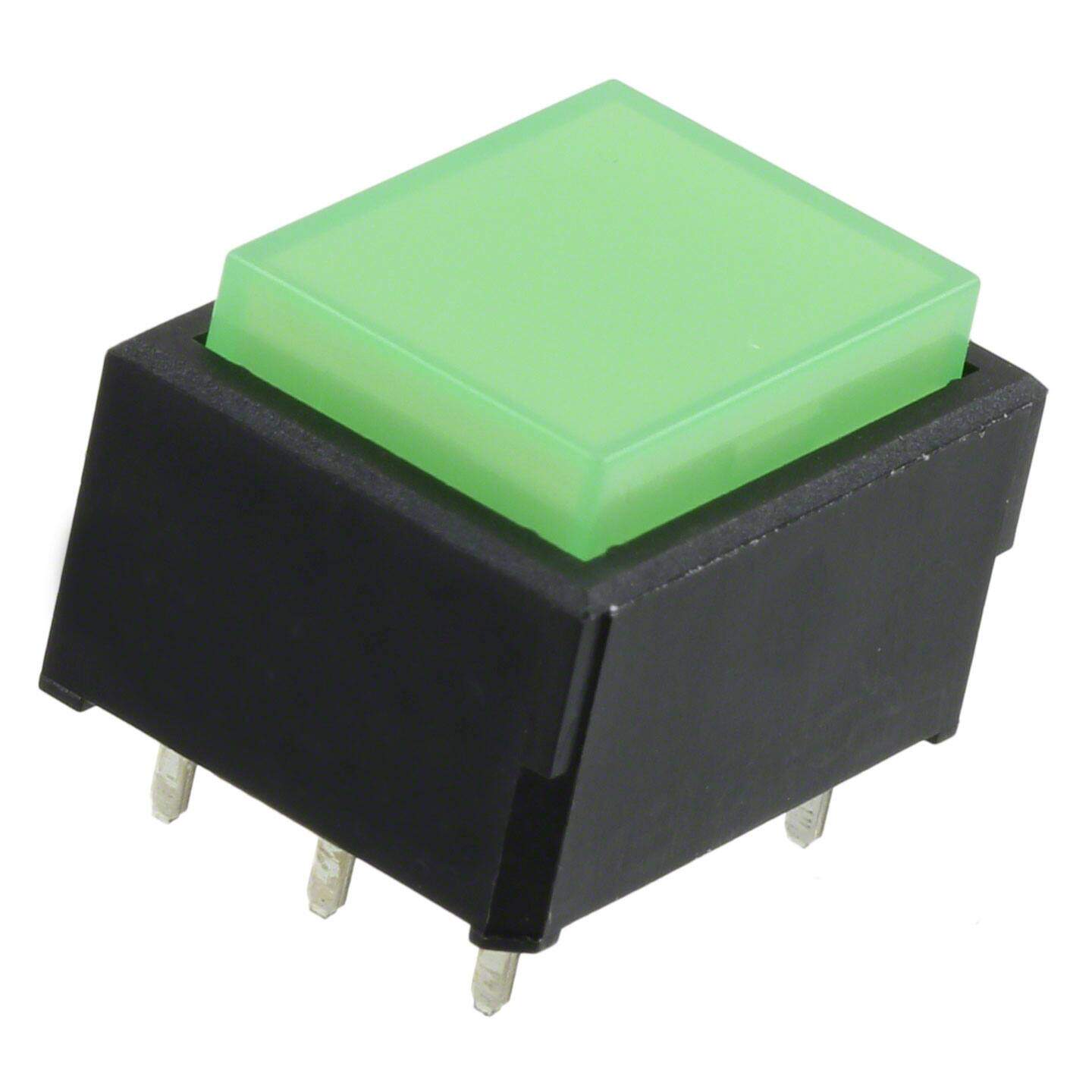

LP1W-16S-559-Z image
Favorite
LP1W-16S-559-Z image
Favorite

LP1W-16S-559-Z

Nidec Copal Electronics
RoHS
RoHS RoHS compliant
Package /
Category Switches / Pushbutton Switches
Description SWITCH PUSHBUTTON SPDT 3A 125V
PDF
/
Inventory: 7336
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Physical

Mount Through Hole
Mounting Type Through Hole

Technical

Operating Temperature -15°C~60°C
Packaging Tube
Published 2016
Series LP
Part Status Last Time Buy
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination PC Pin
Type Standard, Illuminated
Max Operating Temperature 60°C
Min Operating Temperature -15°C
Voltage - Rated DC 30V
Current Rating (Amps) 3A AC/DC
Current Rating 3A
Termination Style PC Pin
Voltage - Rated AC 125V
Actuator Type Rectangular, Button
Circuit SPDT
Switch Function On-Mom
Color - Actuator/Cap Green
Illumination Voltage (Nominal) 2.1VDC
Illumination Type, Color LED, Green
Electrical Life 30,000 Cycles
Throw Configuration SPDT
Illumination Type LED

Compliance

RoHS Status ROHS3 Compliant
