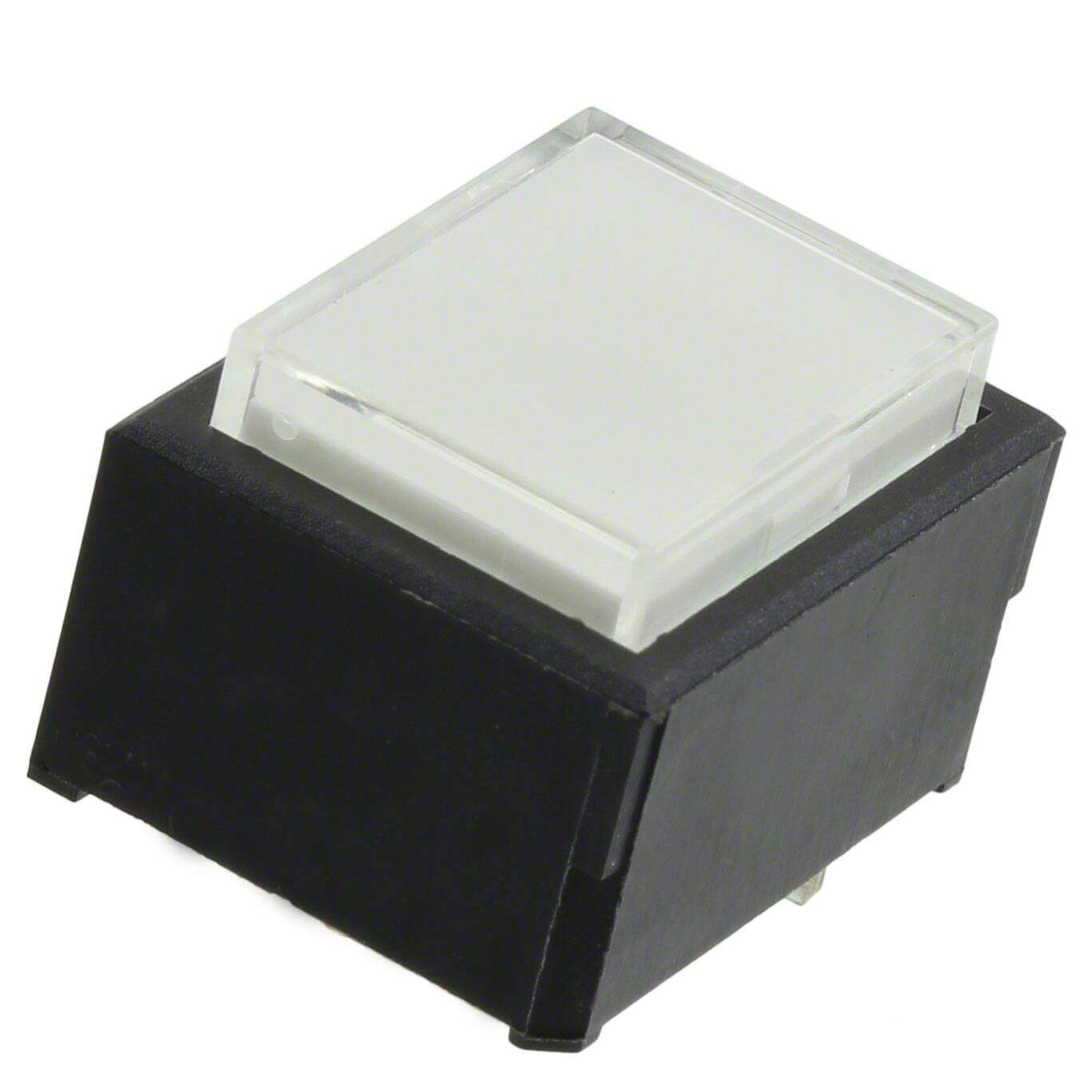

LP1W-16S-509-Z
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSHBUTTON SPDT 3A 125V
PDF
/
Inventory: 5979
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Technical
Illumination Type LED
Throw Configuration SPDT
Electrical Life 30,000 Cycles
Illumination Type, Color LED, Green
Illumination Voltage (Nominal) 2.1VDC
Color - Actuator/Cap Clear
Switch Function On-Mom
Circuit SPDT
Actuator Type Rectangular, Button
Voltage - Rated AC 125V
Termination Style PC Pin
Current Rating 3A
Current Rating (Amps) 3A AC/DC
Voltage - Rated DC 30V
Min Operating Temperature -15°C
Max Operating Temperature 60°C
Type Standard, Illuminated
Termination PC Pin
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Last Time Buy
Series LP
Published 2016
Packaging Tube
Operating Temperature -15°C~60°C
Physical
Mounting Type Through Hole
Mount Through Hole
