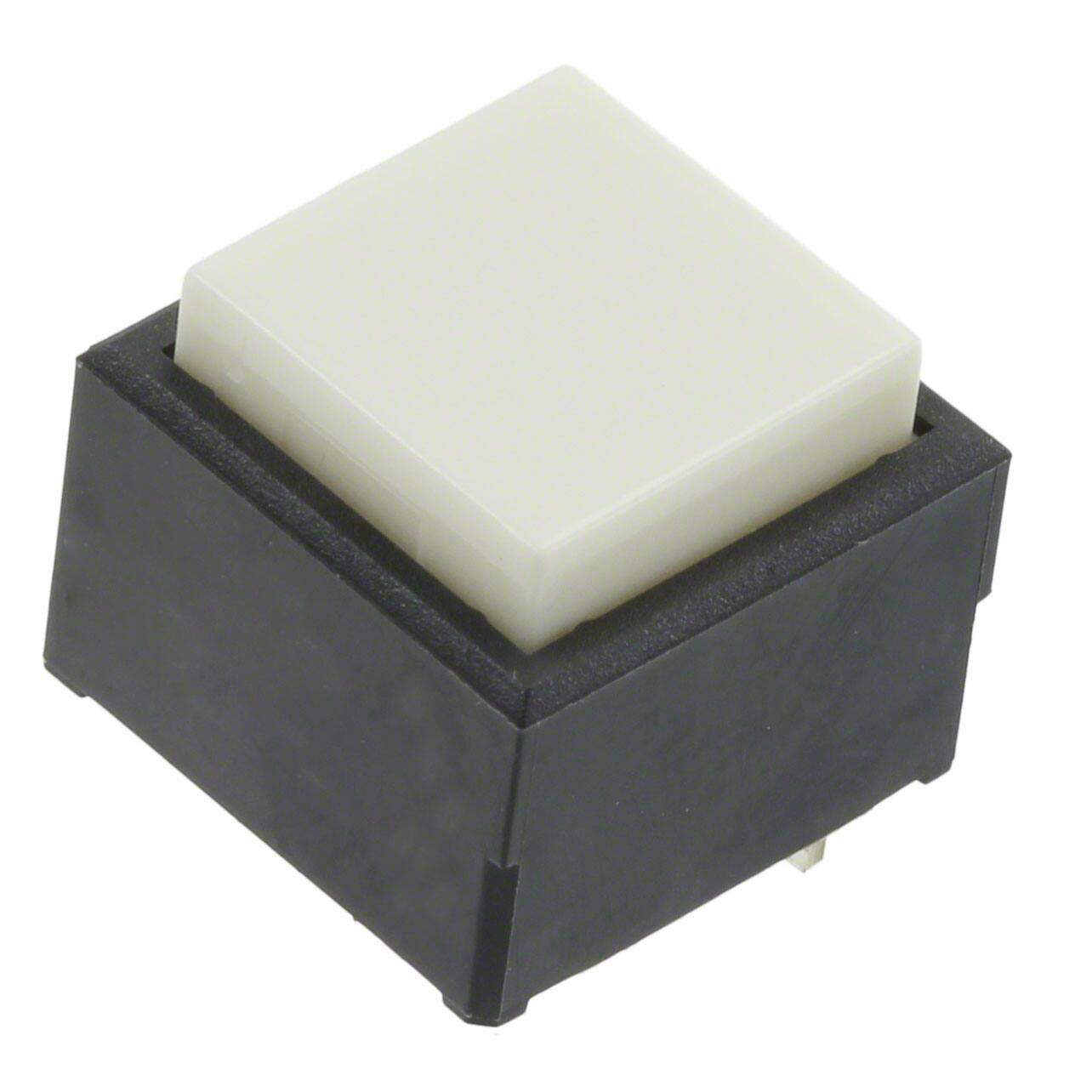

LP1S-17S-W-Z
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSHBUTTON SPDT 3A 125V
PDF
/
Inventory: 8662
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Through Hole
Mounting Type Through Hole
Technical
Operating Temperature -15°C~60°C
Packaging Tube
Published 2016
Series LP
Part Status Last Time Buy
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination PC Pin
Type Standard
Max Operating Temperature 60°C
Min Operating Temperature -15°C
Voltage - Rated DC 30V
Current Rating (Amps) 3A AC/DC
Current Rating 3A
Termination Style PC Pin
Voltage - Rated AC 125V
Actuator Type Square, Button
Circuit SPDT
Switch Function On-On
Color - Actuator/Cap White
Electrical Life 30,000 Cycles
Throw Configuration SPDT
Compliance
RoHS Status ROHS3 Compliant
