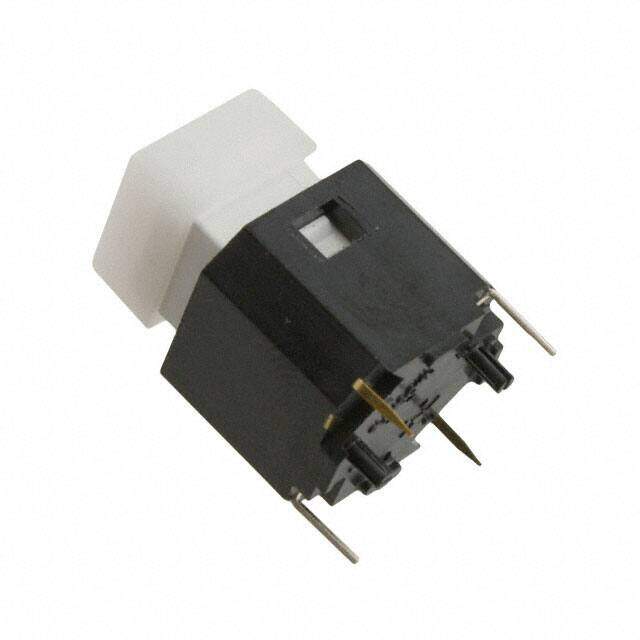

CFPB-1CC-4W2W
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSH SPST-NO 1MA 20V
PDF
/
Buying Options
Total Price: USD $3.92
Unit Price: USD $3.916381
≥1 USD $3.916381
≥200 USD $1.562351
≥500 USD $1.511148
≥1000 USD $1.48489
Inventory: 9574
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Actuator Length 0.354 inch
Length - Termination 0.142 inch
Body Height 13.9954mm
Technical
Contact Function OFF-(ON)
PCB Hole Count 6
Contact (DC) Max Rating R Load 0.001A@5VDC
Electrical Life 500,000 Cycles
Dielectric Withstanding Voltage 250VAC V
Contact Voltage(DC)-Max 5V
Illumination Type, Color LED, Yellow
Illumination Voltage (Nominal) 2.2VDC
Contact Current(DC)-Max 0.001A
Color - Actuator/Cap White
Insulation Resistance 100000000Ohm
Switch Function Off-Mom
Circuit SPST-NO
Actuator Type Square, Button
Termination Style PC Pin
Reach Compliance Code unknown
Current Rating (Amps) 1mA DC
Voltage - Rated DC 20V
Type Standard, Illuminated
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Discontinued
Series CFPB
Published 2012
Packaging Bag
Operating Temperature -10°C~60°C
Physical
Surface Mount NO
Mounting Type Through Hole
Supply Chain
Factory Lead Time 14 Weeks
