CFP2-2RC4-AW
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description

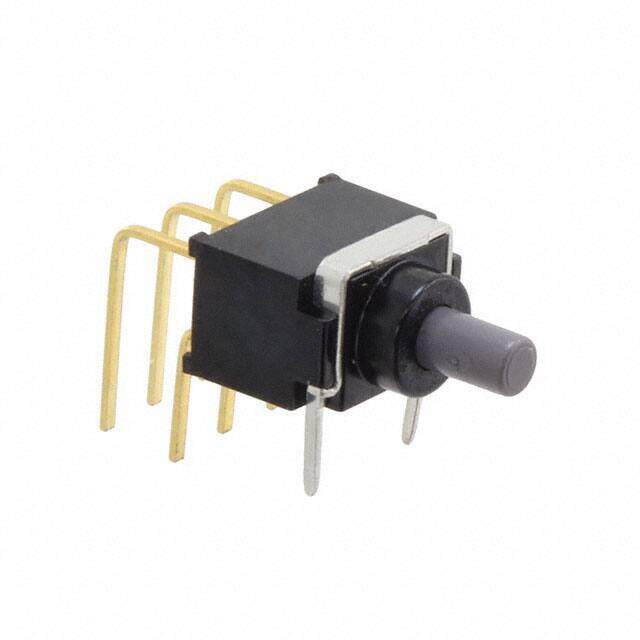

Pushbutton Switch DPDT Standard Through Hole, Right Angle
PDF
/
Buying Options
Total Price: USD $4.94
Unit Price: USD $4.9368
≥1 USD $4.9368
≥10 USD $4.444
≥100 USD $4.221888
≥500 USD $4.04404
≥1000 USD $3.91072
≥3000 USD $3.710722
Inventory: 977
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Technical
Mechanical Life 30,000 Cycles
Throw Configuration DPDT
Electrical Life 10,000 Cycles
Switch Function On-Mom
Circuit DPDT
Actuator Type Plunger for Cap
Voltage - Rated AC 28V
Termination Style PC Pin
Current Rating (Amps) 0.4VA AC/DC
Voltage - Rated DC 28V
Min Operating Temperature -40°C
Max Operating Temperature 85°C
Type Standard
Termination PC Pin
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Washable
Series CFP2
Published 2016
Packaging Tray
Operating Temperature -40°C~85°C
Physical
Mounting Type Through Hole, Right Angle
Mount Through Hole
Supply Chain
Factory Lead Time 9 Weeks
