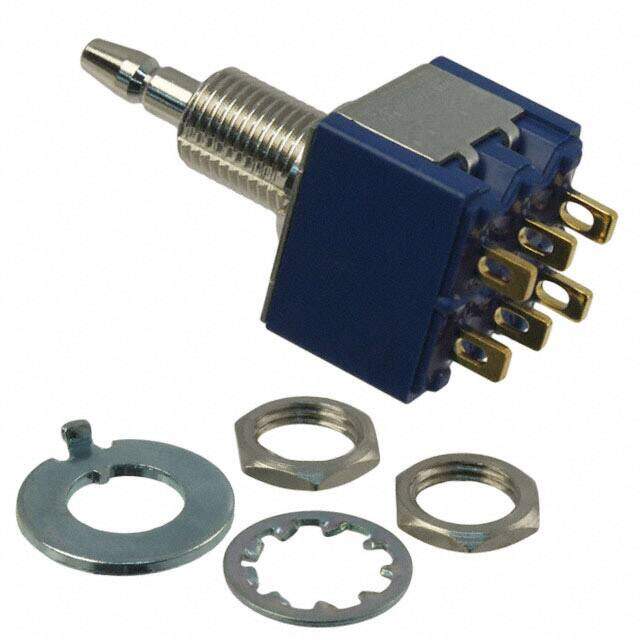

8R2021B-N-Z
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSH DPDT 0.06A 30V
PDF
/
Inventory: 4687
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Mount Panel
Mounting Type Panel Mount, Rear
Technical
Operating Temperature -20°C~85°C
Packaging Bulk
Published 2010
Series 8R-N
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Type Standard
Max Operating Temperature 85°C
Min Operating Temperature -20°C
Voltage - Rated DC 30V
Current Rating (Amps) 60mA DC
Current Rating 60mA
Termination Style Solder Lug
Actuator Type Plunger for Cap
Circuit DPDT
Switch Function On-Mom
Panel Cutout Dimensions Circular - 6.50mm Dia
Electrical Life 50,000 Cycles
Throw Configuration DPDT
Compliance
RoHS Status ROHS3 Compliant
Lead Free Lead Free
