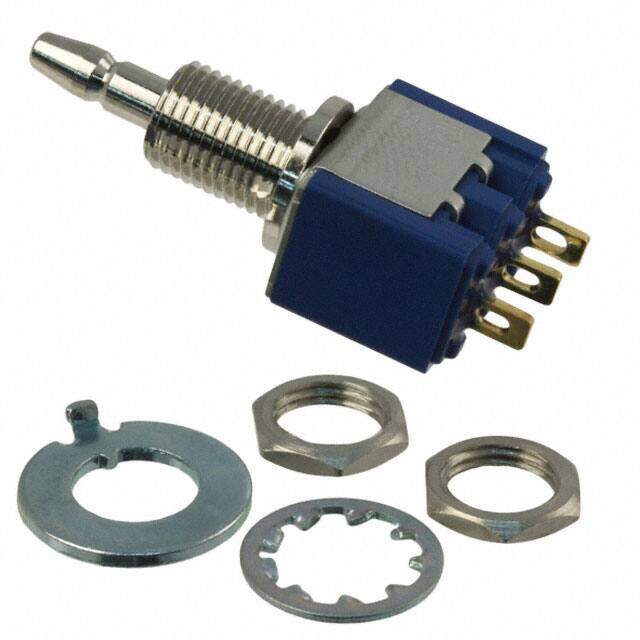

8R1021B-N-Z
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSH SPDT 0.06A 30V
PDF
/
Buying Options
Total Price: USD $8.25
Unit Price: USD $8.2544
≥1 USD $8.2544
≥10 USD $7.43512
≥100 USD $7.124128
≥500 USD $6.773712
≥1000 USD $6.501176
≥3000 USD $6.111917
Inventory: 488
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Mount Panel
Mounting Type Panel Mount, Rear
Technical
Operating Temperature -20°C~85°C
Packaging Bulk
Published 2010
Series 8R-N
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Type Standard
Voltage - Rated DC 30V
Current Rating (Amps) 60mA DC
Reach Compliance Code unknown
Current Rating 60mA
Termination Style Solder Lug
Body Length or Diameter 13.0048mm
Body Breadth 8.001 mm
Actuator Type Plunger for Cap
Circuit SPDT
Switch Function On-Mom
Panel Cutout Dimensions Circular - 6.50mm Dia
Insulation Resistance 1000000000Ohm
Dielectric Withstanding Voltage 1000VAC V
Electrical Life 50,000 Cycles
PCB Hole Count 6
Contact Function ON-(ON)
Bushing Length 0.315 inch
Bushing Diameter 0.25 inch
Dimensions
Body Height 7.493mm
Length - Termination 0.138 inch
Actuator Length 0.413 inch
Compliance
RoHS Status ROHS3 Compliant
Lead Free Lead Free
