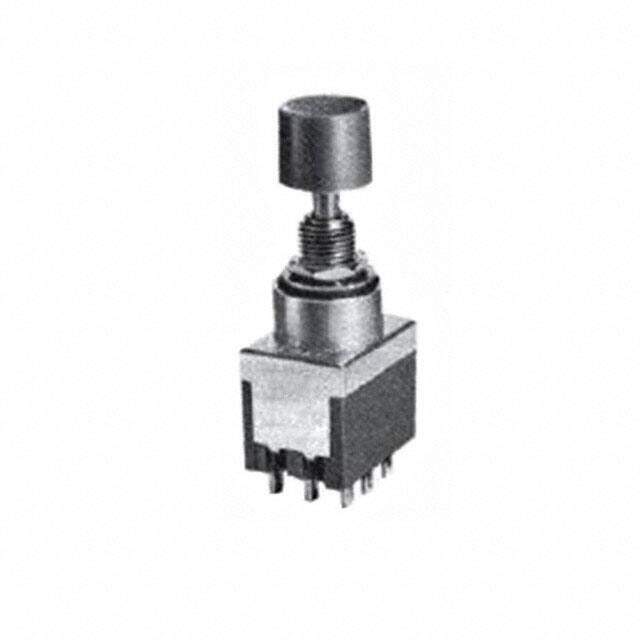

8P3011-Z
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSHBUTTON 3PDT 6A 125V
PDF
/
Inventory: 3333
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Mount Panel
Mounting Type Panel Mount, Rear
Technical
Operating Temperature -30°C~85°C
Packaging Bulk
Series 8P
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Type Standard
Max Operating Temperature 85°C
Min Operating Temperature -30°C
Voltage - Rated DC 30V
Current Rating (Amps) 6A AC 4A DC
Ingress Protection Splash Proof
Current Rating 4A
Termination Style Solder Lug
Voltage - Rated AC 125V
Actuator Type Plunger for Cap
Circuit 3PDT
Switch Function On-On
Panel Cutout Dimensions Circular - 6.50mm Dia
Electrical Life 40,000 Cycles
Throw Configuration 3PDT
Compliance
RoHS Status ROHS3 Compliant
