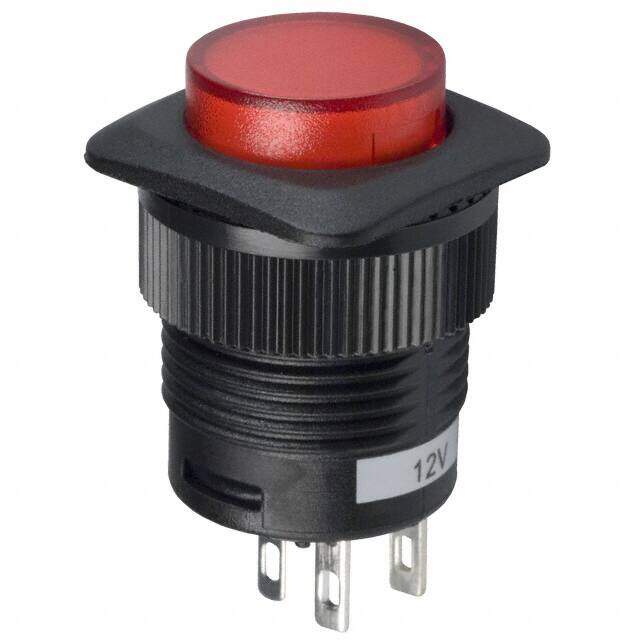

CLS-PC11A125S01R
RoHS
/
Package /
Category Switches / Pushbutton Switches
Description
SWITCH PUSHBUTTON SPST 3A 125V
PDF
/
Inventory: 7833
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Contains Lead
RoHS Status RoHS Compliant
Technical
Overall Height 5.5mm
Size 16mm
Illumination Type LED
Illumination Type, Color LED, Red
Color - Actuator/Cap Red
Configuration SINGLE
Panel Cutout Dimensions Circular - 16.00mm Dia
Switch Function On-Off
Circuit SPST
Actuator Type Round, Button
Voltage - Rated AC 125V
Termination Style Solder Lug
Current Rating 3A
Terminal Pitch 4.5mm
Number of Functions 1
Orientation Vertical
Current Rating (Amps) 3A AC
HTS Code 8541.40.20.00
Type Standard, Illuminated
Termination Solder
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code yes
Series CLS
Published 2007
Packaging Bulk
Physical
Mounting Type Panel Mount, Front
Mount Front, Panel
