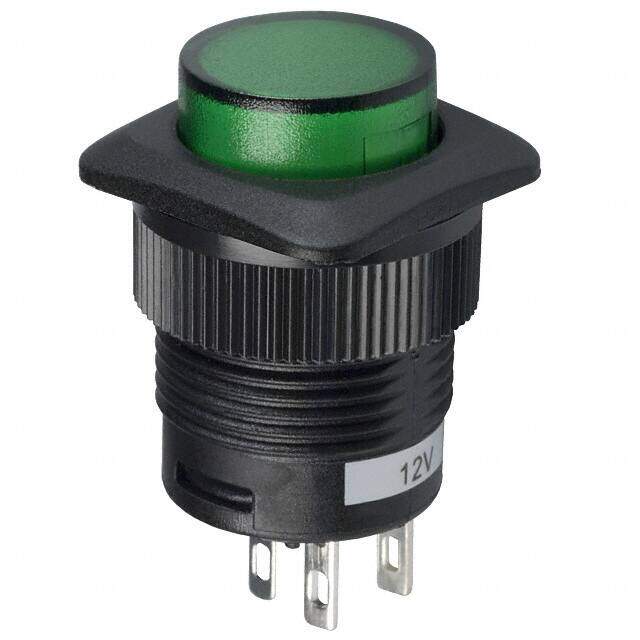

CLS-PC11A125S01G
RoHS
/
Package /
Category Switches / Pushbutton Switches
Description
SWITCH PUSHBUTTON SPST 3A 125V
PDF
/
Inventory: 8357
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Front, Panel
Mounting Type Panel Mount, Front
Technical
Packaging Bulk
Published 2007
Series CLS
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination Solder
Type Standard, Illuminated
HTS Code 8541.40.20.00
Current Rating (Amps) 3A AC
Orientation Vertical
Number of Functions 1
Terminal Pitch 4.5mm
Current Rating 3A
Termination Style Solder Lug
Voltage - Rated AC 125V
Actuator Type Round, Button
Circuit SPST
Switch Function On-Off
Panel Cutout Dimensions Circular - 16.00mm Dia
Configuration SINGLE
Color - Actuator/Cap Green
Illumination Type, Color LED, Green
Illumination Type LED
Size 16mm
Overall Height 5.5mm
Compliance
RoHS Status Non-RoHS Compliant
Lead Free Contains Lead
