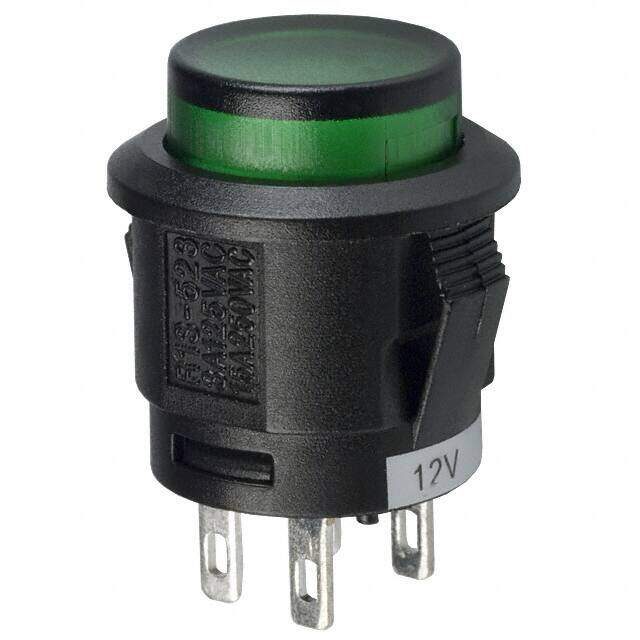

CLS-PC11A125S00G image
Favorite
CLS-PC11A125S00G image
Favorite

CLS-PC11A125S00G

Lumex Opto/Components Inc.
RoHS
/
Package /
Category Switches / Pushbutton Switches
Description SWITCH PUSH SPST-NO 3A 125V
PDF
/
Inventory: 2256
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

Lead Free Contains Lead
RoHS Status RoHS Compliant

Technical

Overall Height 6mm
Size 16mm
Illumination Type LED
Throw Configuration SPST
Illumination Type, Color LED, Green
Color - Actuator/Cap Green
Panel Cutout Dimensions Circular - 16.00mm Dia
Switch Function Off-Mom
Circuit SPST-NO
Actuator Type Round, Button
Voltage - Rated AC 125V
Termination Style Solder Lug
Current Rating 3A
Terminal Pitch 5.1mm
Number of Functions 1
Orientation Vertical
Current Rating (Amps) 3A AC
HTS Code 8541.40.20.00
Type Standard, Illuminated
Termination Solder
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code yes
Series CLS
Published 2007
Packaging Bulk

Physical

Mounting Type Panel Mount, Snap-In
Mount Panel, Snap in
