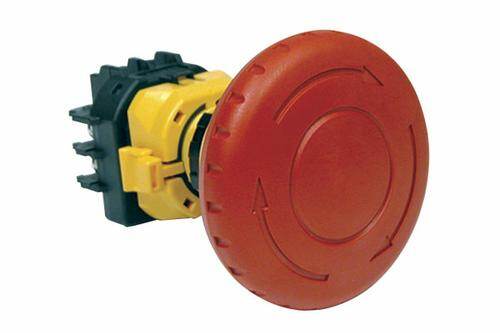

XW1E-BV513M-R
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
22MM EMERGENCY-STOP
PDF
/
Inventory: 1580
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Ratings IP65
RoHS Status ROHS3 Compliant
Dimensions
Width 38.6mm
Length 60mm
Height 79.2mm
Technical
Head Diameter 60 mm
Actuator Diameter 60 mm
Operating Force 32 N
Contact Current Rating 5A
Mechanical Life 250000 cycles
Max Voltage Rating (DC) 250V
Throw Configuration 4PST, SPST
Electrical Life 250000 cycles
Max Voltage Rating (AC) 250V
Contact Resistance 50mOhm
Approval Agency CCC, CE, CSA, EN, IEC, TUV, UL
Voltage - Rated AC 250V
Depth 60mm
Orientation Straight
Color Red
Min Operating Temperature -25°C
Max Operating Temperature 60°C
Termination Screw
Number of Terminations 8
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Published 2005
Physical
Weight 81g
Mount Panel
Contact Plating Gold
Contact Material Gold, Silver
Supply Chain
Factory Lead Time 8 Weeks
Alternative Model
