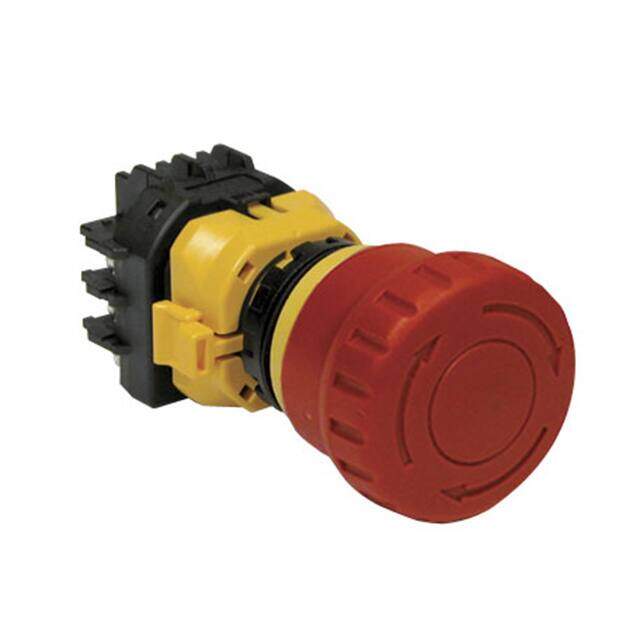

XW1E-BV411M-R
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
22MM EMERGENCY-STOP
PDF
/
Buying Options
Total Price: USD $39.77
Unit Price: USD $39.7672
≥1 USD $39.7672
≥10 USD $35.51152
≥100 USD $33.19976
≥500 USD $30.333248
≥1000 USD $28.391264
≥3000 USD $26.54168
Inventory: 112
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Material Gold, Silver
Contact Plating Gold
Mount Panel
Mounting Type Panel Mount, Front
Weight 72g
Technical
Operating Temperature -25°C~60°C
Packaging Bulk
Published 2005
Series XW
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Number of Terminations 4
Termination Screw
Type Emergency Stop
Voltage - Rated DC 30V
Current Rating (Amps) 5A AC 2A DC
Orientation Straight
Ingress Protection IP65 - Dust Tight, Water Resistant
Depth 40mm
Current Rating 100mA
Termination Style Screw Terminal
Voltage - Rated AC 125V
Approval Agency CCC, CE, CSA, EN, IEC, TUV, UL
Actuator Type Round, Button, Mushroom
Circuit DPST-NO/NC
Switch Function On-Off, Off-On
Panel Cutout Dimensions Circular - 22.30mm Dia
Contact Resistance 50mOhm
Color - Actuator/Cap Red
Max Voltage Rating (AC) 250V
Electrical Life 100,000 Cycles
Number of Poles 1
Throw Configuration SPST
Max Voltage Rating (DC) 250V
Mechanical Life 250,000 Cycles
Contact Current Rating 5A
Operating Force 32 N
Actuator Diameter 40 mm
Head Diameter 40 mm
Dimensions
Height 79.2mm
Length 40mm
Width 38.6mm
Compliance
RoHS Status ROHS3 Compliant
Ratings IP65
