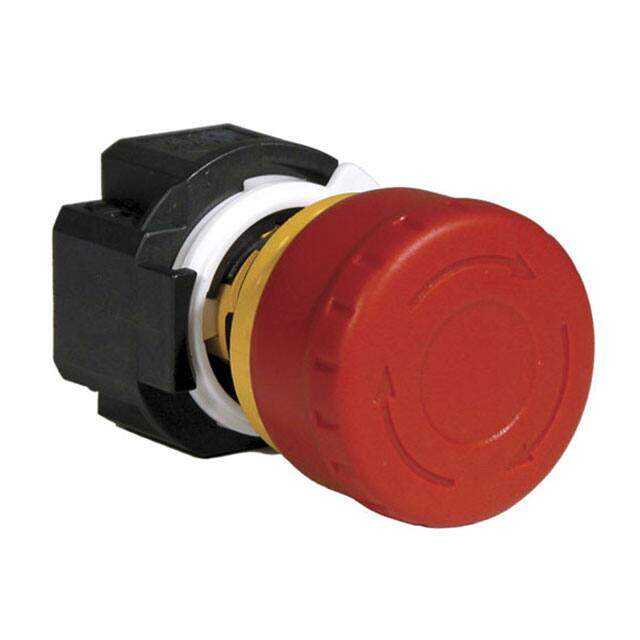

XA1E-BV302-R image
Favorite
XA1E-BV302-R image
Favorite

XA1E-BV302-R

IDEC
RoHS
RoHS RoHS compliant
Package /
Category Switches / Pushbutton Switches
Description 16MM EMERGENCY-STOP
PDF
/
Buying Options
Total Price: USD $46.11
Unit Price: USD $46.112
≥1 USD $46.112
≥10 USD $41.17696
≥100 USD $38.49648
≥500 USD $35.172544
≥1000 USD $32.9208
≥3000 USD $30.776064
Inventory: 47
Minimum: 1
-
+

Technical Details

Compliance

Ratings IP65
RoHS Status ROHS3 Compliant

Dimensions

Length 29.8mm
Height 48.5mm

Technical

Actuator Diameter 29 mm
Operating Force 10.5 N
Mechanical Life 250,000 Cycles
Max Voltage Rating (DC) 250V
Throw Configuration DPST
Electrical Life 100,000 Cycles
Max Voltage Rating (AC) 250V
Color - Actuator/Cap Red
Contact Resistance 50mOhm
Panel Cutout Dimensions Circular - 16.20mm Dia
Switch Function On-Off
Circuit DPST-NC
Actuator Type Round, Button, Mushroom
Voltage - Rated AC 125V
Termination Style Solder Lug
Current Rating 3A
Depth 29.8mm
Ingress Protection IP65 - Dust Tight, Water Resistant
Orientation Straight
Current Rating (Amps) 3A AC 2A DC
Voltage - Rated DC 30V
Color Red, Yellow
Type Emergency Stop
Termination Solder
Number of Terminations 4
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Series XA
Published 2012
Packaging Bulk
Operating Temperature -25°C~60°C

Physical

Weight 23g
Mounting Type Panel Mount, Front
Mount Panel
Contact Plating Gold
Contact Material Gold, Silver

Supply Chain

Factory Lead Time 4 Weeks
