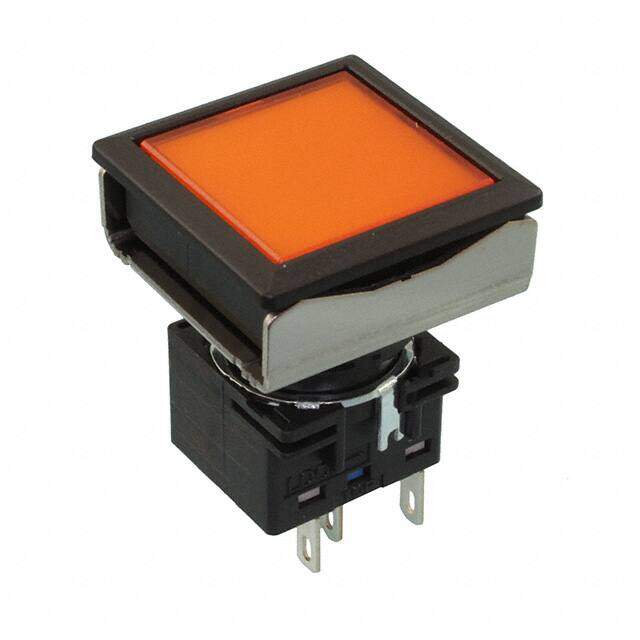

LBW7L-M1T64A
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
LBW FLUSH ILLD PB MOME. AMBER
PDF
/
Buying Options
Total Price: USD $39.76
Unit Price: USD $39.7584
≥1 USD $39.7584
Inventory: 40
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Technical
Mechanical Life 2,000,000 Cycles
Electrical Life 50,000 Cycles
Illumination Type, Color LED, Amber
Illumination Voltage (Nominal) 24VAC/DC
Color - Actuator/Cap Clear
Panel Cutout Dimensions Square - 22.50mm2
Switch Function On-Mom
Circuit DPDT
Actuator Type Square, Button, Flush
Voltage - Rated AC 125V
Termination Style Solder, Quick Connect - 0.110 (2.8mm)
Ingress Protection IP65 - Dust Tight, Water Resistant
Current Rating (Amps) 5A AC/DC
Voltage - Rated DC 30V
Type Standard, Illuminated
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series LBW
Packaging Bulk
Operating Temperature -25°C~55°C
Physical
Mounting Type Panel Mount, Front
Supply Chain
Factory Lead Time 4 Weeks
