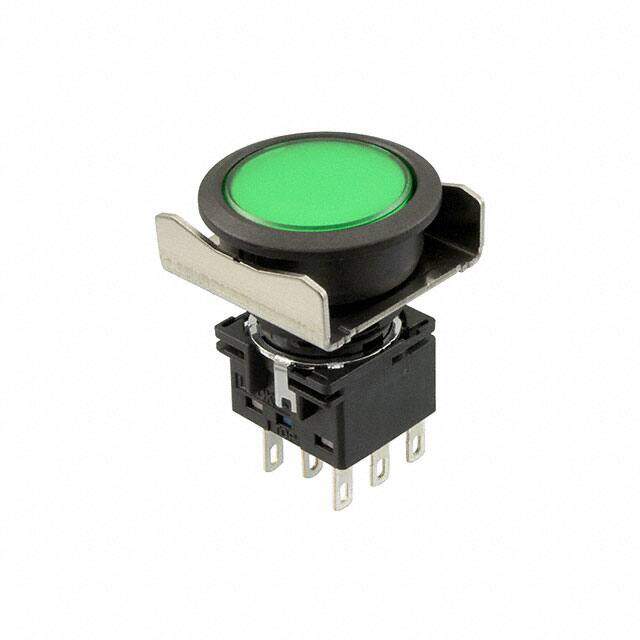

LBW6L-M1T64G
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
LBW FLUSH ILLD PB MOME. GREEN
PDF
/
Inventory: 3898
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Technical
Mechanical Life 2,000,000 Cycles
Electrical Life 50,000 Cycles
Illumination Type, Color LED, Green
Illumination Voltage (Nominal) 24VAC/DC
Color - Actuator/Cap Clear
Panel Cutout Dimensions Circular - 22.30mm Dia
Switch Function On-Mom
Circuit DPDT
Actuator Type Round, Button, Flush
Voltage - Rated AC 125V
Termination Style Solder, Quick Connect - 0.110 (2.8mm)
Ingress Protection IP65 - Dust Tight, Water Resistant
Current Rating (Amps) 5A AC/DC
Voltage - Rated DC 30V
Type Standard, Illuminated
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series LBW
Packaging Bulk
Operating Temperature -25°C~55°C
Physical
Mounting Type Panel Mount, Front
Contact Material Silver
Supply Chain
Factory Lead Time 4 Weeks
