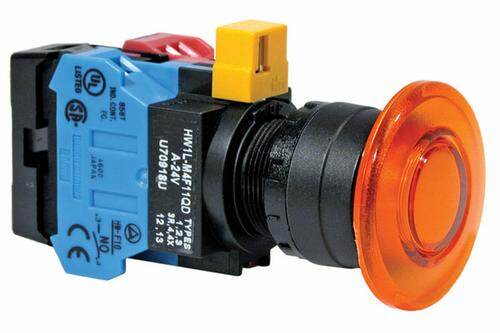

HW1L-M4F10QD-R-24V
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
22MM PUSHBUTTON RED
PDF
/
Inventory: 2355
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Actuator Length 10.2mm
Technical
Lens Style Round
Contact Current Rating 10A
Switch Type PUSHBUTTON SWITCH
Mechanical Life 5e+06 cycles
Max Voltage Rating (DC) 220V
Throw Configuration SPST
Electrical Life 1e+07 cycles
Max Voltage Rating (AC) 440V
Approval Agency CE, CSA, IEC, TUV, UL
Orientation Straight
Color Red
Min Operating Temperature -25°C
Max Operating Temperature 50°C
Termination Contact Block
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Published 2012
Physical
Mount Panel
Contact Material Silver
Supply Chain
Factory Lead Time 8 Weeks
Alternative Model
