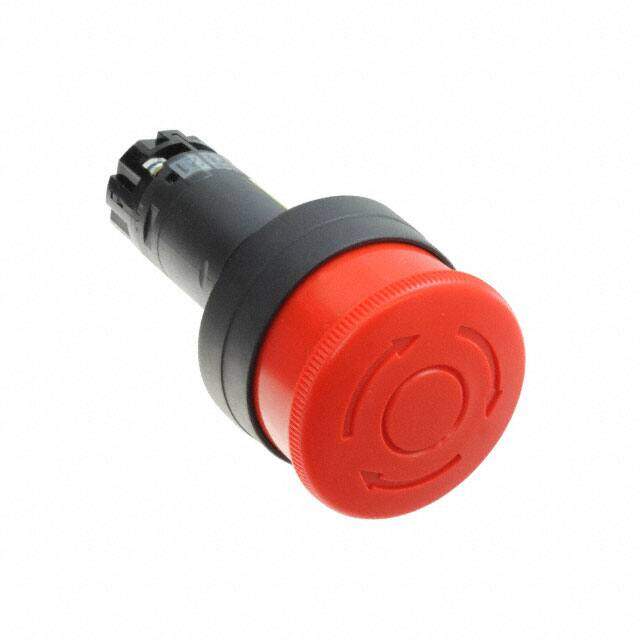

HW1E-TV4F02QD-R-24V
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
22MM EMERGENCY-STOP LIGHTED
PDF
/
Buying Options
Total Price: USD $72.11
Unit Price: USD $72.105228
≥1 USD $72.105228
Inventory: 12
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Mounting Type Panel Mount, Front
Technical
Operating Temperature -25°C~50°C
Packaging Bulk
Published 2011
Series HW
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Type Emergency Stop, Illuminated
Voltage - Rated DC 24V
Current Rating (Amps) 10A AC 8A DC
Ingress Protection IP65 - Dust Tight, Water Resistant
Termination Style Screw Terminal
Voltage - Rated AC 110V
Actuator Type Round, Button, Mushroom
Circuit DPST-NC
Switch Function On-Off
Panel Cutout Dimensions Circular - 22.30mm Dia
Color - Actuator/Cap Red
Illumination Voltage (Nominal) 24VAC/DC
Illumination Type, Color LED, Red
Throw Configuration DPDT
Mechanical Life 500,000 Cycles
Contact Current Rating 10A
Compliance
REACH SVHC Unknown
RoHS Status ROHS3 Compliant
Ratings IP65
