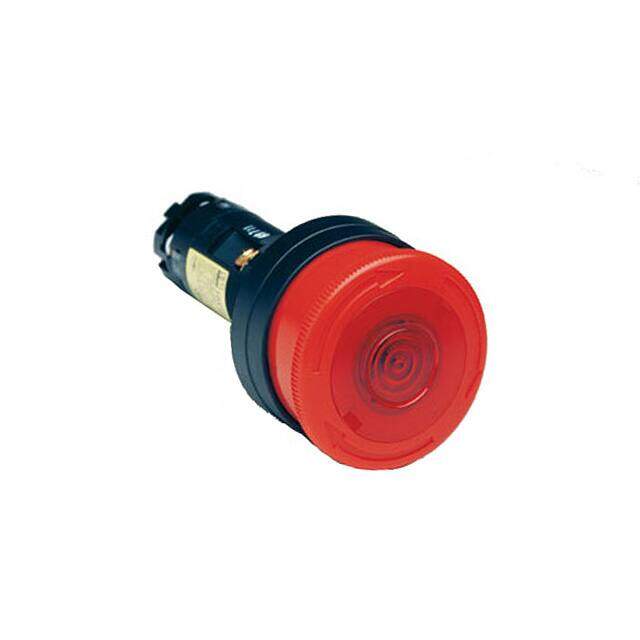

HW1E-LV4F02QD-R-24V
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
22MM EMERGENCY-STOP LIGHTED
PDF
/
Inventory: 1632
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Ratings IP20, IP65
RoHS Status ROHS3 Compliant
Dimensions
Length 40mm
Height 95mm
Technical
Actuator Diameter 40 mm
Illumination Type LED
Mechanical Life 500,000 Cycles
Max Voltage Rating (DC) 220V
Throw Configuration DPST
Max Voltage Rating (AC) 440V
Illumination Type, Color LED, Red
Illumination Voltage (Nominal) 24VAC/DC
Color - Actuator/Cap Red
Panel Cutout Dimensions Circular - 22.30mm Dia
Switch Function On-Off
Circuit DPST-NC
Actuator Type Round, Button, Mushroom
Approval Agency CCC, CE, CSA, EN, TUV, UL, VDE
Voltage - Rated AC 110V
Termination Style Screw Terminal
Depth 40mm
Ingress Protection IP65 - Dust Tight, Water Resistant
Orientation Straight
Current Rating (Amps) 10A AC 8A DC
Voltage - Rated DC 24V
Type Emergency Stop, Illuminated
Termination Screw
Number of Terminations 4
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Series HW
Published 2005
Packaging Bulk
Operating Temperature -25°C~50°C
Physical
Mounting Type Panel Mount, Front
Mount Panel
Contact Material Silver
Supply Chain
Factory Lead Time 4 Weeks
