HW1B-M1F10-S
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description

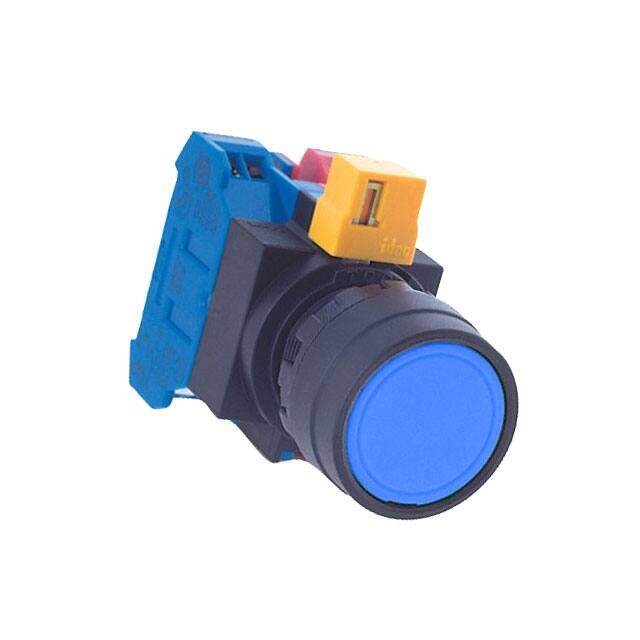

22MM PUSHBUTTON BLUE
PDF
/
Buying Options
Total Price: USD $12.62
Unit Price: USD $12.6192
≥1 USD $12.6192
≥10 USD $11.40128
≥100 USD $9.938368
≥500 USD $7.546
Inventory: 135
Minimum: 1
-
+
Technical Details
Compliance
Ratings IP20, IP65
RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Technical
Contact Current Rating 10A
Mechanical Life 5,000,000 Cycles
Throw Configuration SPST
Color - Actuator/Cap Blue
Panel Cutout Dimensions Circular - 22.30mm Dia
Switch Function Off-Mom
Circuit SPST-NO
Actuator Type Round, Button, Flush
Voltage - Rated AC 110V
Termination Style Screw Terminal
Ingress Protection IP65 - Dust Tight, Water Resistant
Current Rating (Amps) 10A AC 8A DC
Voltage - Rated DC 24V
Type Standard
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Series HW
Published 2007
Packaging Bulk
Operating Temperature -25°C~50°C
Physical
Body Material Plastic
Mounting Type Panel Mount, Front
Mount Panel
Supply Chain
Factory Lead Time 4 Weeks
