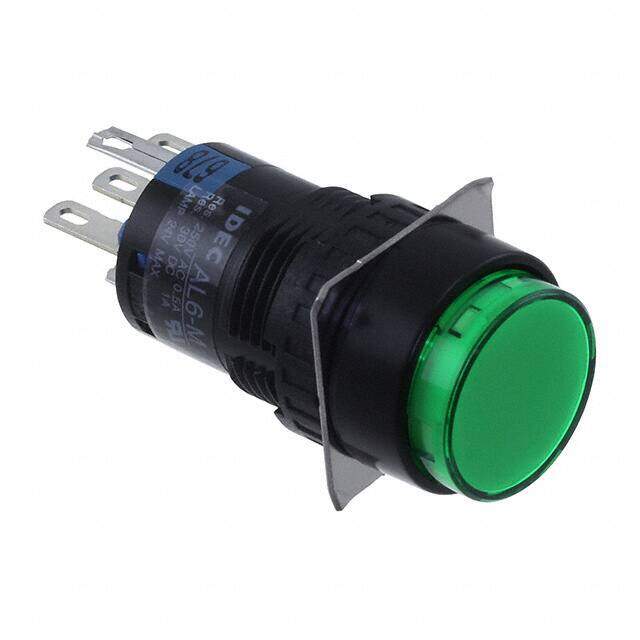

AL6M-M14P-G
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
16MM PUSHBUTTON ILLUMINATED
PDF
/
Buying Options
Total Price: USD $21.4
Unit Price: USD $21.4016
≥1 USD $21.4016
≥10 USD $18.64016
≥100 USD $17.40376
≥500 USD $15.929408
≥1000 USD $14.88344
≥3000 USD $13.932424
Inventory: 64
Minimum: 1
-
+
Technical Details
Compliance
Ratings IP65
RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Technical
Actuator Diameter 18 mm
Contact Current Rating 1A
Mechanical Life 1,000,000 Cycles
Max Voltage Rating (DC) 250V
Number of Poles 1
Electrical Life 100,000 Cycles
Max Voltage Rating (AC) 250V
Illumination Type, Color LED, Green
Illumination Voltage (Nominal) 24VAC/DC
Color - Actuator/Cap Green
Contact Resistance 50mOhm
Panel Cutout Dimensions Circular - 16.20mm Dia
Switch Function On-Mom
Circuit SPDT
Actuator Type Round, Button
Approval Agency CE, CSA, UL
Voltage - Rated AC 120V
Termination Style Solder, Quick Connect - 0.110 (2.8mm)
Current Rating 1A
Ingress Protection IP65 - Dust Tight, Oil and Water Resistant
Orientation Straight
Current Rating (Amps) 1A AC/DC
Voltage - Rated DC 24V
Type Standard, Illuminated
Termination Solder
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Series A6
Published 2005
Packaging Bulk
Operating Temperature -25°C~55°C
Physical
Mounting Type Panel Mount, Front
Mount Panel
Contact Material Gold, Silver
Supply Chain
Factory Lead Time 4 Weeks
