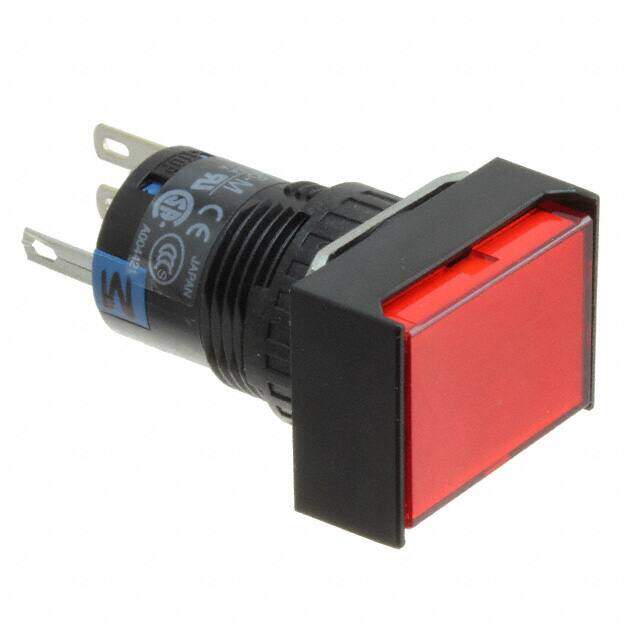

AL6H-M14P-R
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
16MM PUSHBUTTON ILLUMINATED
PDF
/
Buying Options
Total Price: USD $21.4
Unit Price: USD $21.4016
≥1 USD $21.4016
≥10 USD $18.64016
≥100 USD $17.40376
≥500 USD $15.929408
≥1000 USD $14.88344
≥3000 USD $13.932424
Inventory: 77
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Material Gold, Silver
Mount Panel
Mounting Type Panel Mount, Front
Technical
Operating Temperature -25°C~55°C
Packaging Bulk
Published 2005
Series A6
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Termination Solder
Type Standard, Illuminated
Voltage - Rated 250V
Voltage - Rated DC 24V
Current Rating (Amps) 1A AC/DC
Orientation Straight
Ingress Protection IP65 - Dust Tight, Oil and Water Resistant
Current Rating 1A
Termination Style Solder, Quick Connect - 0.110 (2.8mm)
Voltage - Rated AC 120V
Approval Agency CE, CSA, UL
Actuator Type Rectangular, Button
Circuit SPDT
Switch Function On-Mom
Panel Cutout Dimensions Circular - 16.20mm Dia
Contact Resistance 50mOhm
Insulation Resistance 100MOhm
Color - Actuator/Cap Red
Illumination Voltage (Nominal) 24VAC/DC
Illumination Type, Color LED, Red
Max Voltage Rating (AC) 250V
Electrical Life 100,000 Cycles
Number of Poles 1
Max Voltage Rating (DC) 250V
Mechanical Life 1,000,000 Cycles
Contact Current Rating 1A
Illumination Type LED
Life (Cycles) 1e+06 cycles
Compliance
REACH SVHC Unknown
RoHS Status ROHS3 Compliant
Ratings IP65
