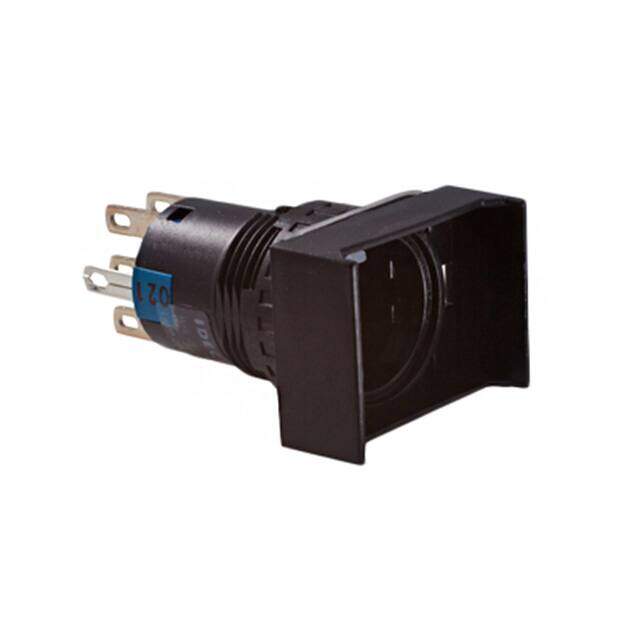

AL6H-M100
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SW PUSH SPDT 1A 120V
PDF
/
Buying Options
Total Price: USD $8.38
Unit Price: USD $8.3776
≥1 USD $8.3776
≥10 USD $6.88952
≥100 USD $5.586064
Inventory: 188
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Mounting Type Panel Mount, Front
Technical
Operating Temperature -25°C~55°C
Packaging Bulk
Published 2005
Series A6
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Type Standard, Illuminated
Voltage - Rated DC 24V
Current Rating (Amps) 1A AC/DC
Termination Style Solder, Quick Connect - 0.110 (2.8mm)
Voltage - Rated AC 120V
Actuator Type Rectangular, Button (Not Included)
Circuit SPDT
Switch Function On-Mom
Panel Cutout Dimensions Circular - 16.20mm Dia
Electrical Life 100,000 Cycles
Mechanical Life 1,000,000 Cycles
Actuator Diameter 18 mm
Compliance
REACH SVHC Unknown
RoHS Status ROHS3 Compliant
