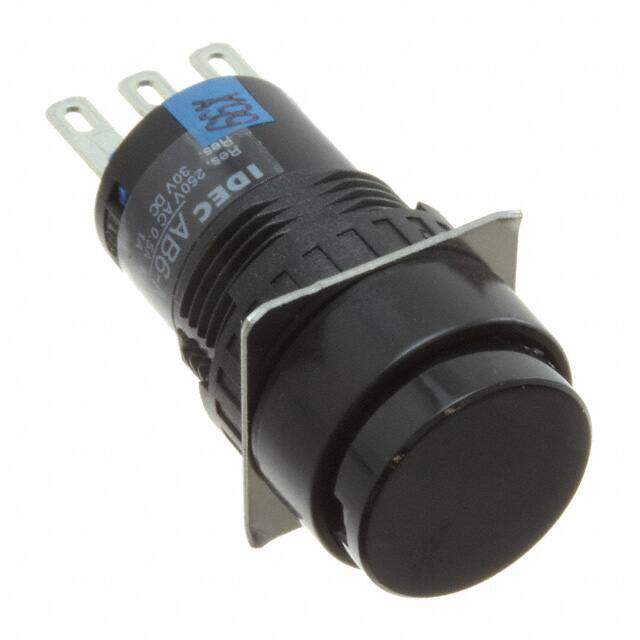

AB6M-M1P-B
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
16MM PUSHBUTTON BLACK
PDF
/
Buying Options
Total Price: USD $37.83
Unit Price: USD $37.832579
≥1 USD $37.832579
≥10 USD $35.691109
≥100 USD $33.670865
≥500 USD $31.764962
≥1000 USD $29.966941
Inventory: 1722
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Material Gold, Silver
Mount Panel
Mounting Type Panel Mount, Front
Technical
Operating Temperature -25°C~55°C
Packaging Bulk
Published 2005
Series A6
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Termination Solder
Type Standard
Voltage - Rated DC 24V
Current Rating (Amps) 1A AC/DC
Orientation Straight
Ingress Protection IP65 - Dust Tight, Oil and Water Resistant
Current Rating 1A
Termination Style Solder, Quick Connect - 0.110 (2.8mm)
Voltage - Rated AC 120V
Approval Agency CSA, UL
Actuator Type Round, Button
Circuit SPDT
Switch Function On-Mom
Panel Cutout Dimensions Circular - 16.20mm Dia
Contact Resistance 50mOhm
Insulation Resistance 100MOhm
Color - Actuator/Cap Black
Max Voltage Rating (AC) 250V
Electrical Life 100,000 Cycles
Number of Poles 1
Max Voltage Rating (DC) 250V
Mechanical Life 1,000,000 Cycles
Contact Current Rating 1A
Compliance
REACH SVHC Unknown
RoHS Status ROHS3 Compliant
Ratings IP65
