AML32FBB4AC
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
Illuminated Pushbutton Switches RECT.1 NEON LAMP RED 125VAC STD BEZEL SW
PDF
/
Inventory: 2103
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant

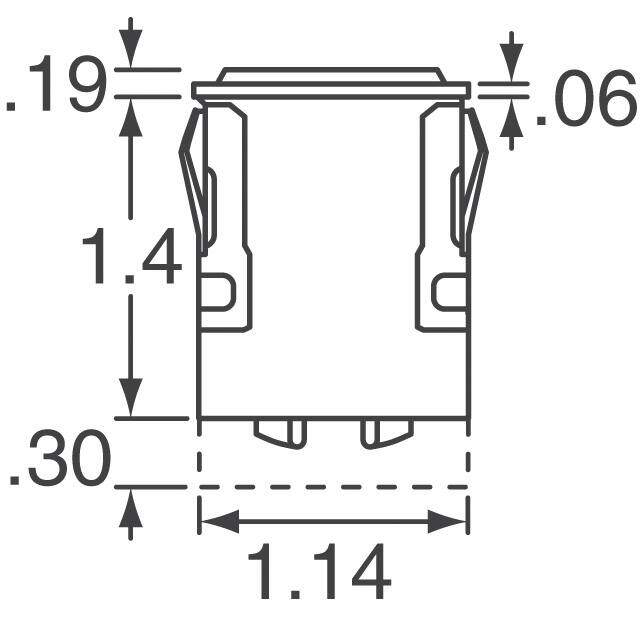

Dimensions
Length 30.5mm
Technical
Contact (DC) Max Rating R Load 10A@30VDC
Contact (AC) Max Rating R Load 10A@250VAC
Illumination Color Red
Illumination Type LED, Lamp, Neon
Mechanical Life 25,000 Cycles
Max Voltage Rating (DC) 30V
Throw Configuration DPST
Electrical Life 25,000 Cycles
Max Current Rating 10A
Max Voltage Rating (AC) 250V
Illumination Type, Color Neon, Red
Illumination Voltage (Nominal) 125VAC
Panel Cutout Dimensions Rectangular - 29.00mm x 19.00mm
Switch Function Off-Mom
Circuit DPST-NO (DM)
Actuator Type Rectangular, Button (Not Included)
Voltage - Rated AC 125V
Termination Style Solder, Quick Connect - 0.187 (4.7mm)
Current Rating 10A
Reach Compliance Code unknown
Depth 20.3mm
Orientation Straight
Current Rating (Amps) 10A AC/DC
Voltage - Rated DC 30V
HTS Code 8536.50.90.35
Color Black
Type Standard, Illuminated
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series AML32
Published 1998
Packaging Bulk
Physical
Mounting Type Panel Mount, Snap-In
Mount Panel, Snap in
Supply Chain
Factory Lead Time 9 Weeks
