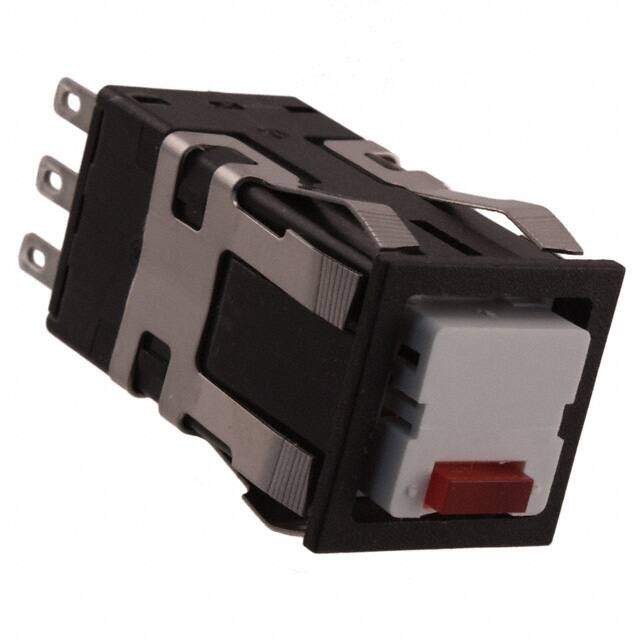

AML22CBF2AD
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSHBUTTON DPDT 3A 125V
PDF
/
Inventory: 3407
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 26 Weeks
Physical
Contact Material Silver
Contact Plating Silver
Mount Panel, Snap in
Mounting Type Panel Mount, Snap-In
Technical
Packaging Bulk
Published 1998
Series AML22
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Type Standard, Illuminated
Color Black, Red
Voltage - Rated DC 24V
Current Rating (Amps) 3A AC 2A DC
Orientation Straight
Current Rating 3A
Termination Style Solder, Quick Connect - 0.110 (2.8mm)
Voltage - Rated AC 125V
Actuator Type Square, Button (Not Included)
Circuit DPDT
Switch Function On-On
Panel Cutout Dimensions Square - 19.05mm2
Illumination Voltage (Nominal) 24VDC
Illumination Type, Color LED, Red
Electrical Life 25,000 Cycles
Throw Configuration DPDT
Mechanical Life 25,000 Cycles
Contact Current Rating 2A
Illumination Type LED
Illumination Color Red
Compliance
REACH SVHC No SVHC
RoHS Status RoHS Compliant
