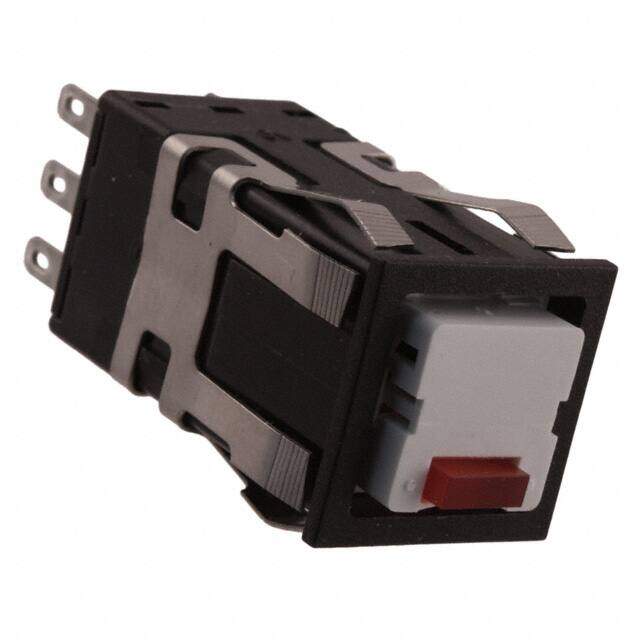

AML22CBB2AC
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSHBUTTON DPDT 3A 125V
PDF
/
Inventory: 3873
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 26 Weeks
Physical
Contact Material Silver
Mount Panel, Snap in
Mounting Type Panel Mount, Snap-In
Technical
Packaging Bulk
Published 1998
Series AML22
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Type Standard, Illuminated
Color Red
HTS Code 8536.50.90.31
Voltage - Rated DC 24V
Current Rating (Amps) 3A AC 2A DC
Orientation Straight
Current Rating 2A
Termination Style Solder, Quick Connect - 0.110 (2.8mm)
Voltage - Rated AC 125V
Actuator Type Square, Button (Not Included)
Circuit DPDT
Switch Function On-Mom
Panel Cutout Dimensions Square - 19.05mm2
Contact Current(DC)-Max 2A
Illumination Voltage (Nominal) 2.4VDC
Illumination Type, Color LED, Red
Electrical Life 25,000 Cycles
Number of Poles 2
Mechanical Life 25,000 Cycles
Contact Current Rating 2A
Illumination Type LED
Dimensions
Body Height 36mm
Compliance
REACH SVHC No SVHC
RoHS Status RoHS Compliant
