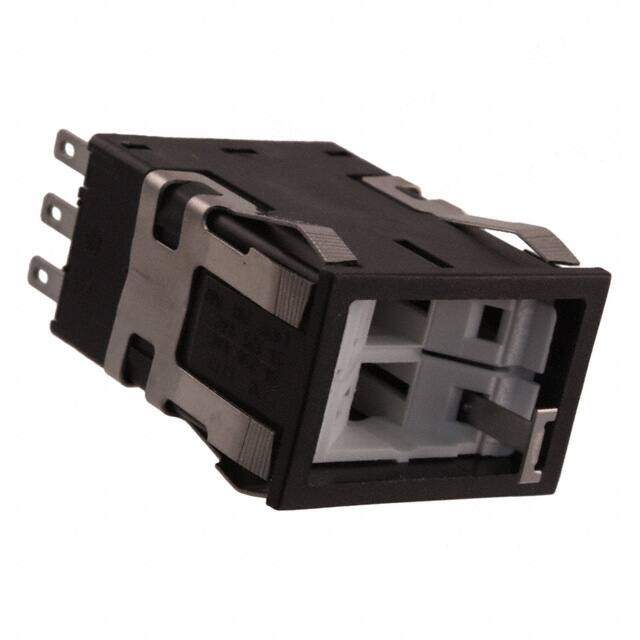

AML21FBA2AB
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSHBUTTON SPDT 3A 125V
PDF
/
Inventory: 10028
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
REACH SVHC No SVHC
Dimensions
Body Height 36mm
Technical
Illumination Color Multiple
Contact Current Rating 2A
Mechanical Life 25,000 Cycles
Number of Poles 1
Electrical Life 25,000 Cycles
Illumination Type, Color Incandescent
Contact Current(DC)-Max 2A
Panel Cutout Dimensions Rectangular - 28.98mm x 19.05mm
Switch Function On-On
Circuit SPDT
Actuator Type Rectangular, Button (Not Included)
Approval Agency CSA, UL
Voltage - Rated AC 125V
Termination Style Solder, Quick Connect - 0.110 (2.8mm)
Current Rating 3A
Orientation Straight
Current Rating (Amps) 3A AC 2A DC
Voltage - Rated DC 24V
HTS Code 8536.50.90.33
Number of Positions 2
Type Standard, Illuminated
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series AML21
Published 1998
Packaging Bulk
Physical
Mounting Type Panel Mount, Snap-In
Mount Panel, Snap in
Contact Material Silver
Supply Chain
Factory Lead Time 30 Weeks
