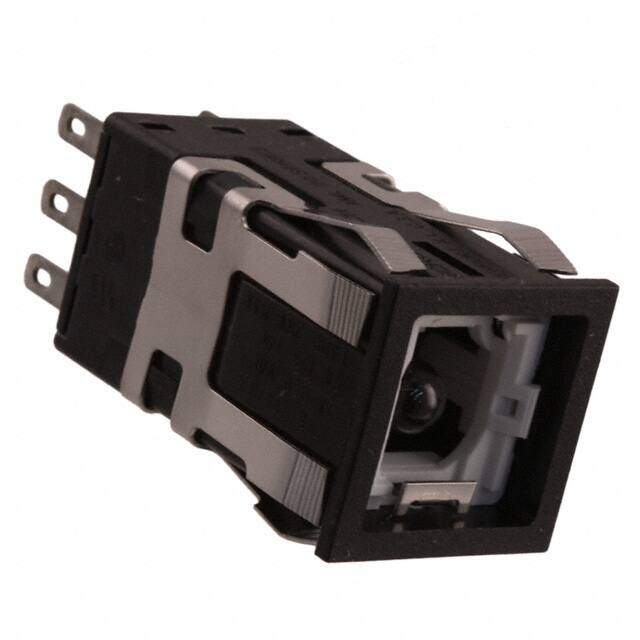

AML21CBE2AC
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSHBUTTON DPDT 3A 125V
PDF
/
Buying Options
Total Price: USD $62.52
Unit Price: USD $62.524
≥1 USD $62.524
≥10 USD $56.96416
≥100 USD $47.586
Inventory: 52
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Contact Material Silver
Mount Panel, Snap in
Mounting Type Panel Mount, Snap-In
Technical
Packaging Bulk
Published 1998
Series AML21
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Type Standard, Illuminated
Color Black
HTS Code 8536.50.90.31
Voltage - Rated DC 24V
Current Rating (Amps) 3A AC 2A DC
Orientation Straight
Current Rating 2A
Termination Style Solder, Quick Connect - 0.110 (2.8mm)
Voltage - Rated AC 125V
Approval Agency CSA, UL
Body Breadth 18.92 mm
Actuator Type Square, Button (Not Included)
Circuit DPDT
Switch Function On-Mom
Panel Cutout Dimensions Square - 19.05mm2
Contact Current(DC)-Max 2A
Illumination Voltage (Nominal) 28VAC
Illumination Type, Color Incandescent
Electrical Life 25,000 Cycles
Mechanical Life 25,000 Cycles
Contact Current Rating 3A
Illumination Type Lamp
Illumination Color Multiple
Dimensions
Height 35.6mm
Length 18.9mm
Width 18.9mm
Compliance
REACH SVHC Unknown
RoHS Status RoHS Compliant
