RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description

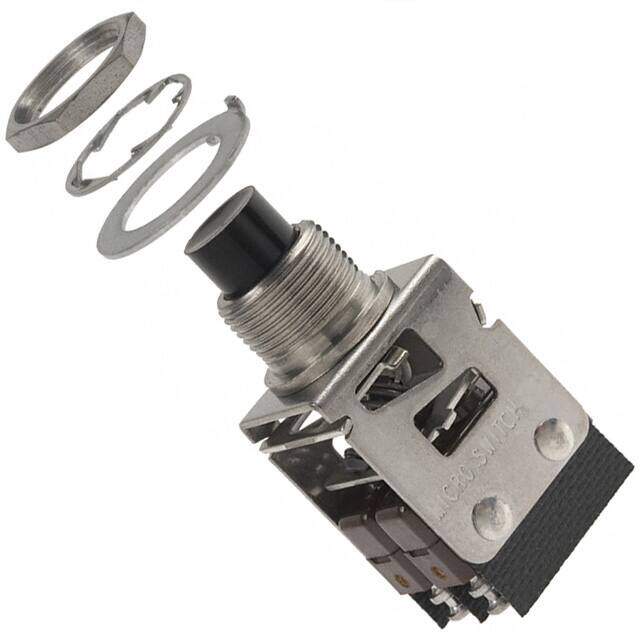

SWITCH PUSH 2XSPDT 5A 115V
PDF
/
Buying Options
Total Price: USD $201.48
Unit Price: USD $201.478947
≥1 USD $201.478947
≥200 USD $77.970505
≥500 USD $75.22917
≥1000 USD $73.87557
Inventory: 9246
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Mount Panel
Mounting Type Panel Mount, Rear
Technical
Packaging Bulk
Published 1998
Series PB
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Type Standard
HTS Code 8536.50.90.31
Voltage - Rated DC 28V
Current Rating (Amps) 5A AC/DC
Orientation Vertical
Current Rating 5A
Termination Style Solder Turret
Voltage - Rated AC 115V
Body Length or Diameter 19.81mm
Body Breadth 16.66 mm
Actuator Type Round, Plunger
Circuit SPDT x 2
Switch Function On-Mom
Color - Actuator/Cap Black
Contact Current(DC)-Max 5A
Throw Configuration DPDT, SPDT
Contact Current Rating 5A
Contact Current(AC)-Max 5A
Contact (AC) Max Rating R Load 5A@115VAC
Operating Force-Max 20.02 N
Dimensions
Body Height 26.67mm
Compliance
RoHS Status RoHS Compliant
Lead Free Lead Free
