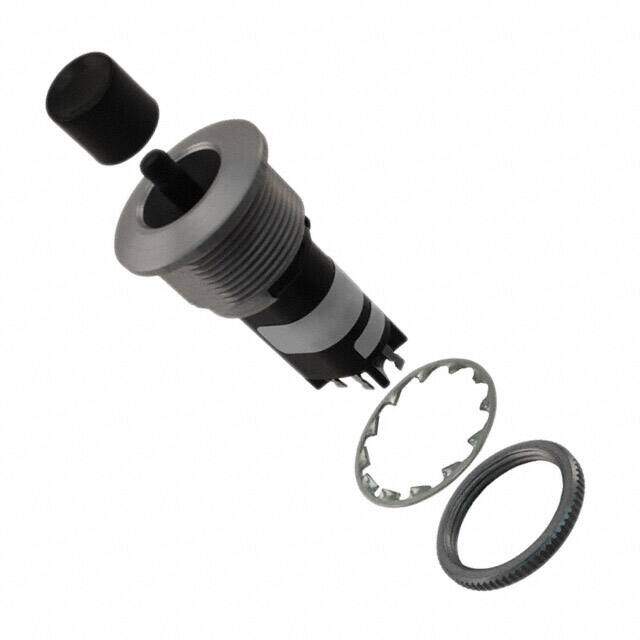

46-05-08-502-07
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSH DPDT 0.25A 115V
PDF
/
Buying Options
Total Price: USD $30.43
Unit Price: USD $30.434335
≥1 USD $30.434335
≥200 USD $11.778026
≥500 USD $11.364462
≥1000 USD $11.15965
Inventory: 7253
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 16 Weeks
Physical
Contact Material Silver
Mount Front, Panel, Through Hole
Mounting Type Panel Mount, Front
Housing Material Phenolic
Technical
Operating Temperature -40°C~85°C
Packaging Bulk
Published 2007
Series 46
JESD-609 Code e2
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Type Standard
Voltage - Rated 220V
HTS Code 8536.50.70.00
Current Rating (Amps) 250mA AC
Orientation Straight
Current Rating 250mA
Termination Style Solder Lug
Voltage - Rated AC 115V
Body Length or Diameter 19.05mm
Body Breadth 15.37 mm
Actuator Type Round, Button
Circuit DPDT
Switch Function On-Mom
Panel Cutout Dimensions Rectangular - 16.28mm x 14.35mm
Color - Actuator/Cap Black
Sealing EPOXY TERMINAL SEALED
Max Voltage Rating (AC) 220V
Max Current Rating 250mA
Electrical Life 250,000 Cycles
Contact Current Rating 250mA
Contact Current(AC)-Max 0.25A
Contact Voltage Rating (AC) 220V
Dimensions
Body Height 25.43mm
Actuator Length 7.14mm
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
