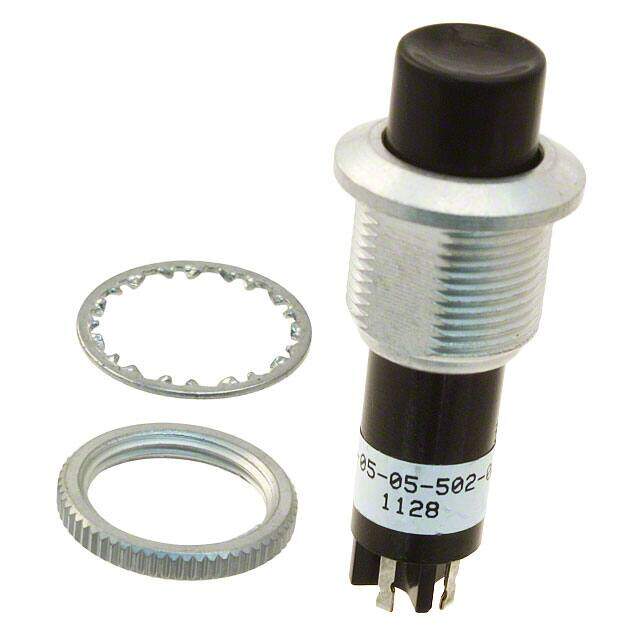

46-05-05-502-07
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSH SPDT 0.25A 115V
PDF
/
Buying Options
Total Price: USD $40.72
Unit Price: USD $40.7176
≥1 USD $40.7176
≥10 USD $37.0568
≥100 USD $31.670408
Inventory: 123
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Radiation Hardening No
Dimensions
Actuator Length 6.48mm
Body Height 25.2mm
Technical
Contact (AC) Max Rating R Load .25A@115VAC
Contact Current(AC)-Max 0.25A
Electrical Life 250,000 Cycles
Max Current Rating 250mA
Max Voltage Rating (AC) 220V
Sealing EPOXY TERMINAL SEALED
Color - Actuator/Cap Black
Panel Cutout Dimensions Rectangular - 13.10mm x 11.17mm
Switch Function On-Mom
Circuit SPDT
Actuator Type Round, Button
Body Breadth 14.99 mm
Body Length or Diameter 15.88mm
Voltage - Rated AC 115V
Termination Style Solder Lug
Current Rating 250mA
Orientation Straight
Current Rating (Amps) 250mA AC
HTS Code 8536.50.70.00
Terminal Finish Silver (Ag)
Type Standard
ECCN Code EAR99
Termination Turret
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e4
Series 46
Published 2007
Packaging Bulk
Operating Temperature -40°C~85°C
Physical
Housing Material Phenolic
Mounting Type Panel Mount, Front
Mount Front, Panel, Through Hole
Supply Chain
Factory Lead Time 16 Weeks
