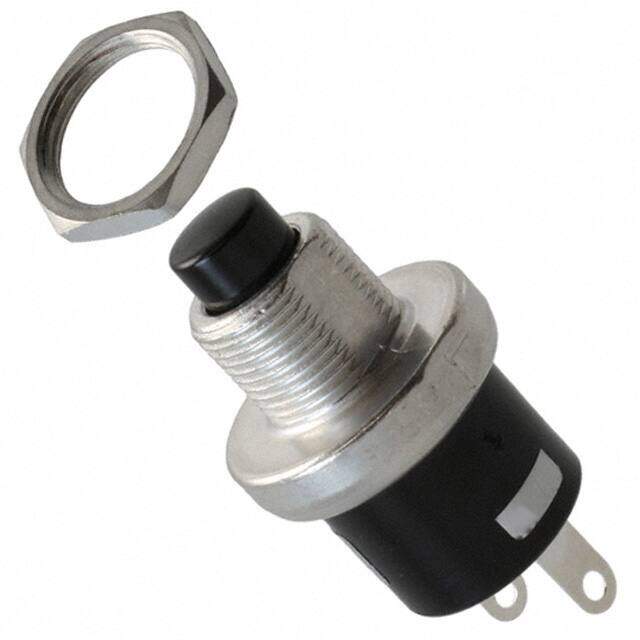

4002
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSH SPST-NC 1A 115V
PDF
/
Buying Options
Total Price: USD $1.81
Unit Price: USD $1.8128
≥1 USD $1.8128
≥10 USD $1.50656
≥100 USD $1.35696
≥500 USD $1.205952
≥1000 USD $1.085392
≥3000 USD $1.055208
Inventory: 141
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 16 Weeks
Physical
Contact Material Copper
Contact Plating Silver
Mount Panel
Mounting Type Panel Mount, Rear
Housing Material Plastic
Actuator Material Plastic, Thermoset
Technical
Operating Temperature -40°C~85°C
Packaging Bulk
Series 4000
JESD-609 Code e4
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Type Standard
HTS Code 8536.50.70.00
Current Rating (Amps) 1A AC
Orientation Straight
Depth 20.32mm
Current Rating 1A
Termination Style Solder Lug
Voltage - Rated AC 115V
Approval Agency CSA, UL
Actuator Type Round, Plunger
Circuit SPST-NC
Switch Function On-Mom
Contact Resistance 0.025mOhm
Insulation Resistance 1.006GOhm
Color - Actuator/Cap Black
Sealing EPOXY TERMINAL SEALED
Max Voltage Rating (AC) 220V
Max Current Rating 1A
Electrical Life 100,000 Cycles
Number of Poles 1
Throw Configuration SPST
Contact Current Rating 1A
Contact Current(AC)-Max 1A
Contact Function ON-(OFF)
Operating Force-Max 8.34 N
Dimensions
Diameter 20.3 mm
Length 20.32mm
Actuator Length 3.81mm
Compliance
REACH SVHC No SVHC
RoHS Status RoHS Compliant
Lead Free Lead Free
