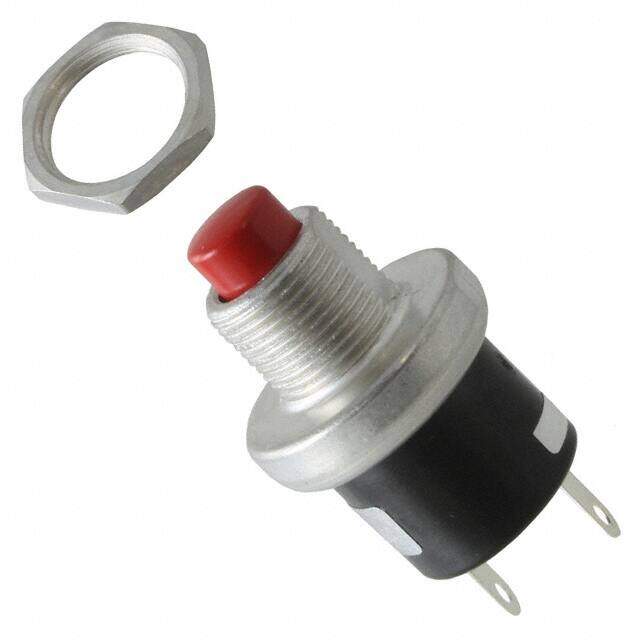

4001UL
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSH SPST-NO 3A 115V
PDF
/
Buying Options
Total Price: USD $9.82
Unit Price: USD $9.8208
≥1 USD $9.8208
≥10 USD $8.84488
≥100 USD $8.474048
≥500 USD $8.05728
≥1000 USD $7.733176
≥3000 USD $7.270102
Inventory: 40
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 16 Weeks
Physical
Contact Material Copper, Silver
Contact Plating Silver
Mount Panel
Mounting Type Panel Mount, Rear
Housing Material Plastic
Actuator Material Plastic, Thermoset
Terminal Material BERYLLIUM COPPER
Technical
Operating Temperature -40°C~85°C
Packaging Bulk
Published 2005
Series 4000
JESD-609 Code e4
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Type Standard
Voltage - Rated 220V
Additional Feature UL RATED
HTS Code 8536.50.70.00
Current Rating (Amps) 3A AC
Orientation Straight
Depth 20.32mm
Current Rating 3A
Termination Style Solder Lug
Voltage - Rated AC 115V
Approval Agency CSA, UL
Actuator Type Round, Plunger
Circuit SPST-NO
Switch Function Off-Mom
Contact Resistance 0.025mOhm
Insulation Resistance 1.005GOhm
Color - Actuator/Cap Red
Sealing EPOXY TERMINAL SEALED
Max Voltage Rating (AC) 115V
Max Current Rating 3A
Electrical Life 6,000 Cycles
Number of Poles 1
Throw Configuration SPST
Contact Current Rating 3A
Contact Current(AC)-Max 3A
Contact Function OFF-(ON)
Operating Force-Max 8.34 N
Contact Voltage Rating (AC) 220V
Dimensions
Length 20.32mm
Actuator Length 4.06mm
Compliance
RoHS Status RoHS Compliant
